FT25 Flying Carpet LED Screen P25 2,800 nits IP65 Foldable Mesh

描述

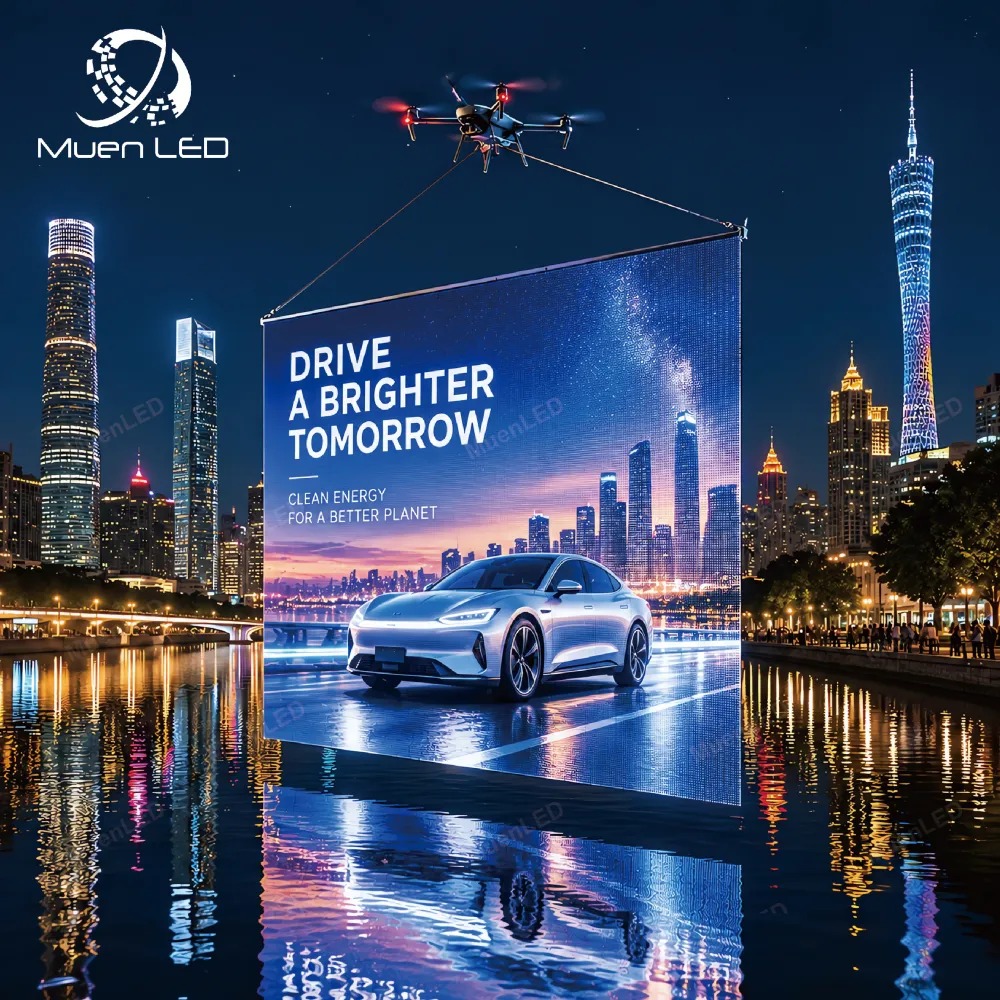

FT25 — Made to order (custom size) Flying Carpet LED Screen

The FT25 is a flexible LED mesh screen that is suspended in the air to create a floating, see-through image. At 25 mm pitch and 2,800 cd it is built for the distances this format is actually watched from, and because it is soft and foldable it rolls up for transport and can be reused across many events. The aluminium structure and IP65 sealing let it work outdoors.

Key Features

• Made to order (custom size) of visible screen at 0.7 kg per square metre: the whole surface travels as a rolled bundle, so freight and crew size stay small even at this scale.
• P25 (25 mm), 2,800 cd: sized for the viewing distance this kind of screen is used at — 25 – 3000 m — where a finer pitch would add cost without adding visible detail.
• IP65 outdoor waterproof: sealed modules and a weather-rated harness, so the screen runs through rain and dust at an outdoor festival or a rooftop activation.
• High transparency: the open mesh lets air and light through, so the screen reads as a floating image rather than a solid wall, and wind load stays low when it is flown.
• Safe suspension: high-tensile wear-resistant steel wire rope, double-ring overlap connections and locked terminations — the failure points are engineered, not improvised.
• Aluminium alloy bottom tube: a lightweight, rust-resistant bottom tube keeps the lower edge straight without adding weight.
• Quick rig: tension the top and bottom rails, connect the mesh, hang — a small crew can fly a large screen in a short time and strike it just as fast.
• Intelligent control: content is played back and updated through the management system, with remote operation from phone, tablet, computer or USB.

Specifications

Applications

Drone and suspended advertising, festival and stadium stages, product launches, shopping-mall atriums, sports events, city festival decoration and any venue where a large image has to appear to float in mid-air — or where the screen must be rigged quickly and packed away afterwards.

Ordering Notes

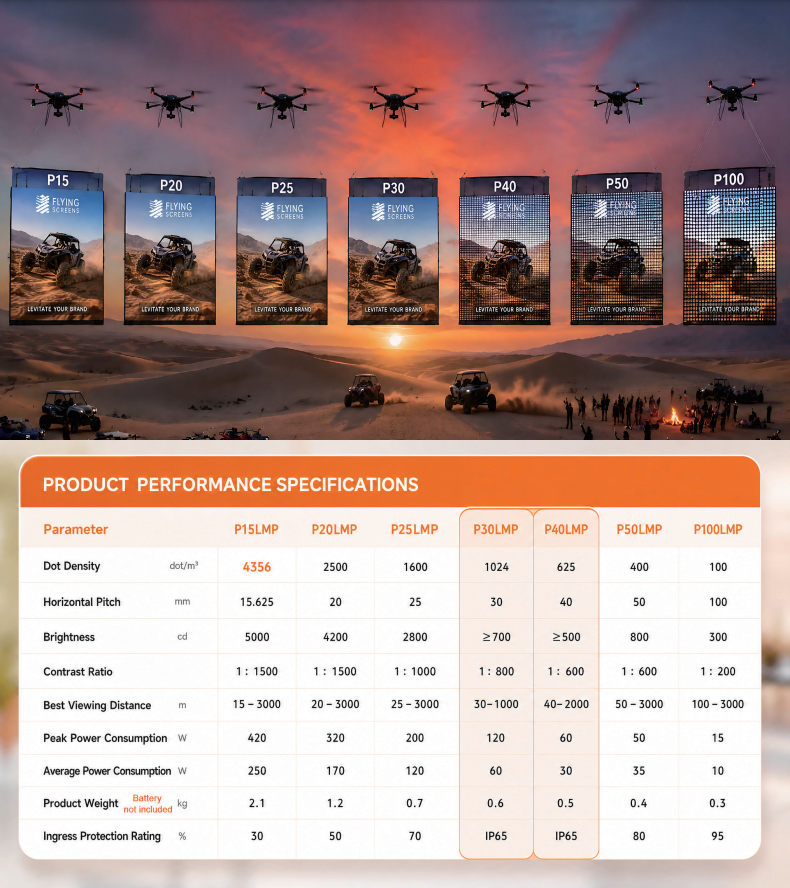

• Screens are made to order in the size you need — other pitches (P15 / P20 / P25 / P30 / P40 / P50 / P100) and custom sizes are available.
• Price shown is for 1 unit; volume discounts apply for larger quantities.
• Battery pack for drone operation is not included unless specified.

FAQ

Q: What is the FT25?
A: The FT25 is a Made to order (custom size) flexible LED mesh screen in the flying carpet format: it is suspended in the air on steel wire rope, a sling, a truss or a drone, and because the mesh is open you see through it. It rolls up for transport, which is why event companies reuse one screen across many shows.

Q: How much does a Made to order (custom size) screen weigh?
A: The mesh itself runs about 0.7 kg per square metre, battery excluded, so the figure scales with the area rather than with the frame. That low weight is what allows the screen to be flown from a drone or hung from rigging points that would not carry a conventional cabinet wall.

Q: Can it be used outdoors in rain?
A: Yes. The modules are sealed to IP65 and the harness is weather-rated, so the screen runs in rain and dust. Wind is the real constraint rather than water: the open mesh keeps wind load low, but the suspension plan still has to be engineered for the site.

Q: How is content played and updated?
A: Through the intelligent operation and management system: content is uploaded from a phone, tablet, computer or USB stick and played back by the on-board controller. Remote management means a campaign can be changed without sending a technician to the site.

Q: Can you make a different size or pitch?
A: Yes — the screen is cut and assembled to order. Pitches from P15 to P100 and any width and height combination are available, and the price scales with area and pitch. Send the finished size and the viewing distance and we will recommend the pitch.
