AS10 Outdoor LED Display: Long-Range Billboard Screen for High-Impact Advertising
AS10 Outdoor LED Display

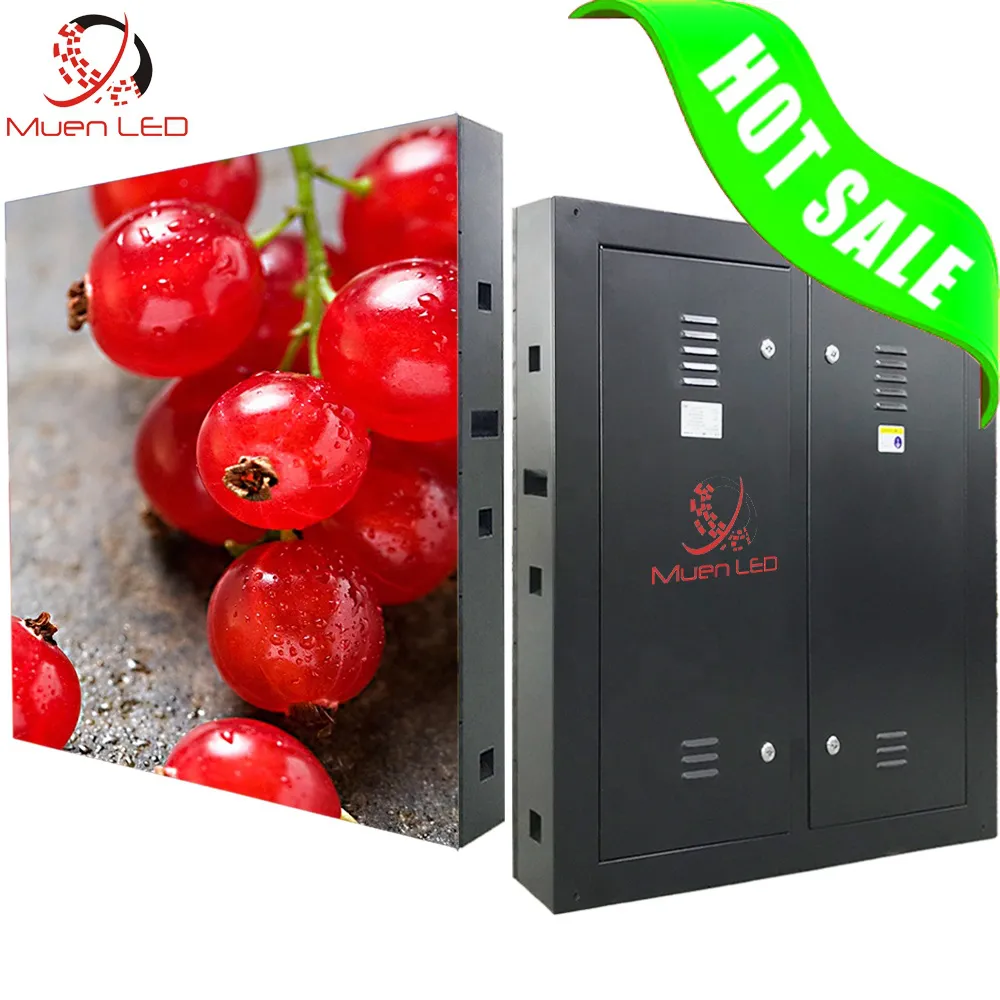

The Muenled AS10 outdoor LED display is part of the AS Series (SMD), a family of fixed-installation outdoor screens built on a standard 960x960x140mm die-cast cabinet. With a 10mm pixel pitch, >5000 nits brightness and IP65 weather sealing, the AS10 delivers reliable, high-impact visuals for long-range outdoor advertising such as highway billboards and rooftop screens.
Key Features
1. 10mm Pixel Pitch, >5000 nits Brightness
The 10mm pixel pitch suits viewing distances of roughly 10 meters and beyond. At >5000 nits, the screen stays clearly visible in direct daylight, and the 1920Hz refresh rate (1/4 scan) keeps video playback smooth with no visible flicker.
2. IP65 Fully Weatherproof
Front and rear of the screen are sealed to IP65, protecting against rain, dust and salt spray — essential for year-round outdoor operation. The back service design lets technicians maintain modules from behind, keeping the front face clean and seamless.
3. Standard 960x960mm Cabinet
The 140mm-thick die-cast cabinet is the industry-standard size for outdoor advertising screens, making it easy to scale from small signs to large facades in 960mm increments. Modules measure 320x160mm and are powered by Muen power supplies with a Novastar control system.
4. Energy-Conscious Design
With the largest pixel pitch in this selection and a 1/4 scan layout, the AS10 uses fewer LED drivers per square meter, keeping power draw and total project cost low for large-format billboard work.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | AS10 |
| Pixel Pitch | 10mm |
| Brightness | >5000 nits |
| Refresh Rate | 1920Hz |
| Scan Mode | 1/4 |
| Total Pixels | None |
| Cabinet Size | 960x960x140mm |
| Module Size | 320x160mm |
| Waterproof Class | IP65 |
| Usage | Outdoor |
| Input Voltage | 200~240VAC 60Hz |
| Maintenance | Back service |
| Power Brand | Muen |
| System Brand | Novastar |
Where the AS10 Fits Best
- Highway billboards — large-format screens read clearly at long distances and highway speeds
- Rooftop and landmark signs — high brightness keeps branding visible across a city skyline
- Stadium perimeter and large venue signage — durable, all-weather 24/7 operation
AS Series Model Selection
The AS Series spans pixel pitches from 2mm to 10mm. The AS10 sits at the long-throw end:
| Model | Pixel Pitch | Brightness | Pixel Density |
|---|---|---|---|
| AS2 | 2mm | >5000 | 230,400 |
| AS2.5 | 2.5mm | >5000 | 147,456 |
| AS3 | 3mm | >4000 | 102,400 |
| AS4 | 4mm | >4000 | 57,600 |
| AS5 | 5mm | >5000 | 36,864 |
| AS6.67 | 6mm | >5000 | 20,736 |
| AS8 | 8mm | >5000 | 14,400 |
| AS10 | 10mm | >5000 | 9,216 |
| AS10 | 10mm | >5000 | 9,216 |
Get a Quote
The AS10 starts at $308 per cabinet, with project-based customization available. Contact Muenled for a detailed quotation and technical proposal.
This article is based on Muenled ERP(AS10) product data. Actual specifications are subject to the delivered product.
