AS6.67 Outdoor LED Display: High-Impact Screens for Building Facades and Urban Media
AS6.67 Outdoor LED Display

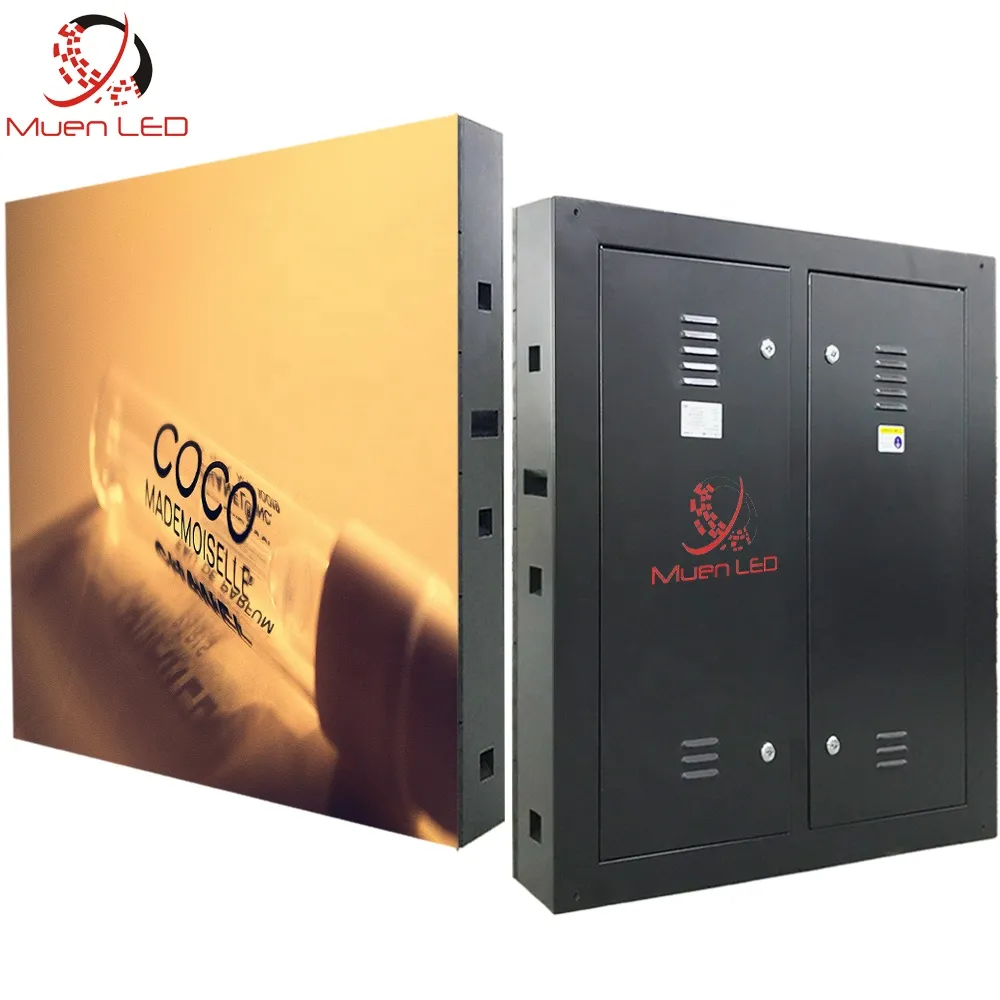

The Muenled AS6.67 outdoor LED display is part of the AS Series (SMD), a family of fixed-installation outdoor screens built on a standard 960x960x140mm die-cast cabinet. With a 6mm pixel pitch, >5000 nits brightness and IP65 weather sealing, the AS6.67 delivers reliable, high-impact visuals for building facades, urban media walls and mid-range advertising.
Key Features
1. 6mm Pixel Pitch, >5000 nits Brightness
The 6mm pixel pitch suits viewing distances of roughly 6 meters and beyond. At >5000 nits, the screen stays clearly visible in direct daylight, and the 1920Hz refresh rate (1/6 scan) keeps video playback smooth with no visible flicker.
2. IP65 Fully Weatherproof
Front and rear of the screen are sealed to IP65, protecting against rain, dust and salt spray — essential for year-round outdoor operation. The back service design lets technicians maintain modules from behind, keeping the front face clean and seamless.
3. Standard 960x960mm Cabinet
The 140mm-thick die-cast cabinet is the industry-standard size for outdoor advertising screens, making it easy to scale from small signs to large facades in 960mm increments. Modules measure 320x160mm and are powered by Muen power supplies with a Novastar control system.
4. Energy-Conscious Design
A 1/6 scan layout with >5000 nits output delivers strong daylight performance while keeping power and heat manageable on large facade installations.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | AS6.67 |
| Pixel Pitch | 6mm |
| Brightness | >5000 nits |
| Refresh Rate | 1920Hz |
| Scan Mode | 1/6 |
| Total Pixels | 20,736 (144×144) |
| Cabinet Size | 960x960x140mm |
| Module Size | 320x160mm |
| Waterproof Class | IP65 |
| Usage | Outdoor |
| Input Voltage | 200~240VAC 60Hz |
| Maintenance | Back service |
| Power Brand | Muen |
| System Brand | Novastar |
Where the AS6.67 Fits Best
- Building facades and glass curtain walls — turn architecture into dynamic media
- Urban landmarks and plazas — mid-range pitch keeps content crisp at city scale
- Shopping mall exteriors — high-impact advertising that works day and night
AS Series Model Selection
The AS Series spans pixel pitches from 2mm to 10mm. The AS6.67 sits in the mid-range sweet spot:
| Model | Pixel Pitch | Brightness | Pixel Density |
|---|---|---|---|
| AS2 | 2mm | >5000 | 230,400 |
| AS2.5 | 2.5mm | >5000 | 147,456 |
| AS3 | 3mm | >4000 | 102,400 |
| AS4 | 4mm | >4000 | 57,600 |
| AS5 | 5mm | >5000 | 36,864 |
| AS6.67 | 6mm | >5000 | 20,736 |
| AS8 | 8mm | >5000 | 14,400 |
| AS6.67 | 6mm | >5000 | 20,736 |
| AS10 | 10mm | >5000 | 9,216 |
Get a Quote
The AS6.67 starts at $374 per cabinet, with project-based customization available. Contact Muenled for a detailed quotation and technical proposal.
This article is based on Muenled ERP product data. Actual specifications are subject to the delivered product.
