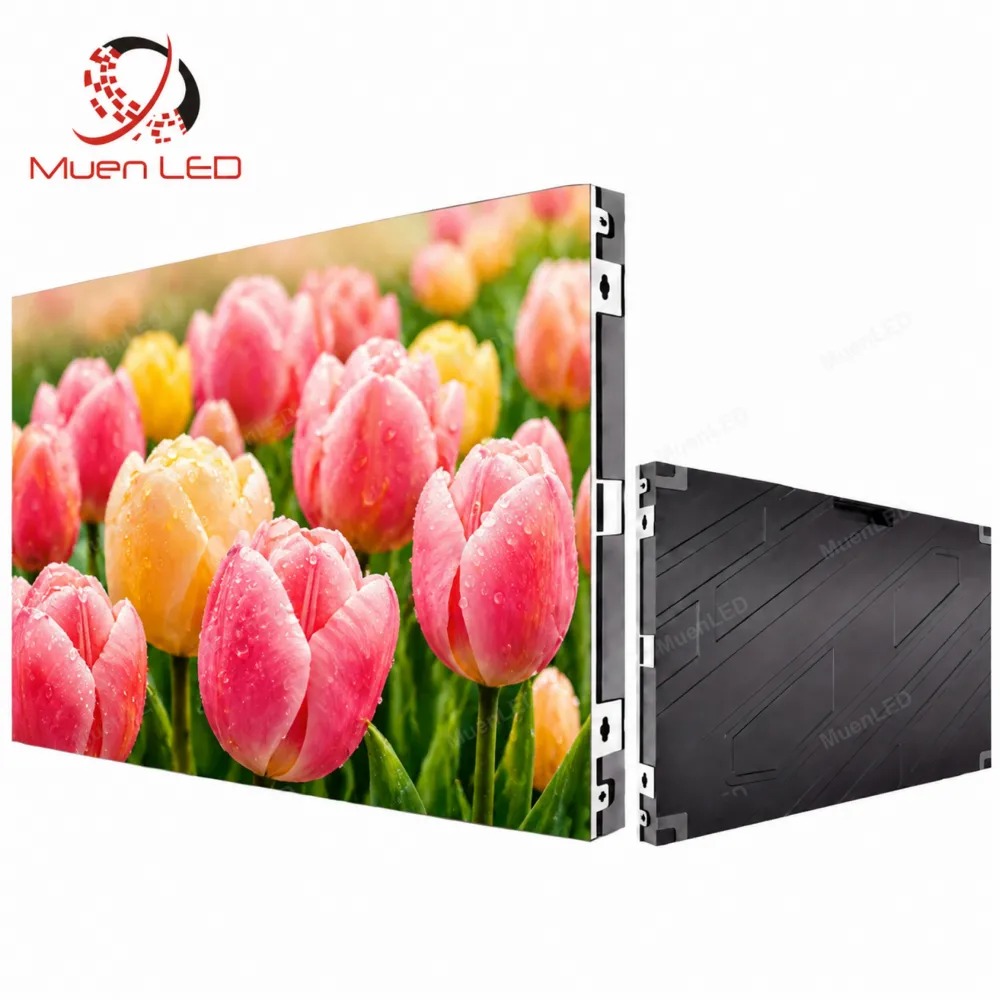

AIAF-GOB1.86 — Indoor Gob Fine-Pitch Panel P1.86
The AIAF-GOB1.86 is a 640 × 480 × 44 mm indoor fixed LED GOB fine-pitch panel: 344 × 258 = 88,752 pixels at P1.86, > 500 nits, 7,680 Hz refresh and IP43 sealing, with front service. It belongs to the AIAF GOB series, so cabinets bought for different jobs share the same module, power supply and control platform — stock and spares stay interchangeable.
Key Features
- GOB surface protection: the LED face is encapsulated in a glue layer, so it survives being touched, knocked and cleaned — the reason GOB is specified for lobby walls, meeting rooms and any screen within arm’s reach.
- P1.86 in a 640 × 480 × 44 mm panel: 344 × 258 = 88,752 pixels — fine enough for a wall you stand a metre away from, in a shallow 44 mm body that sits nearly flush.
- 7,680 Hz refresh: high enough that cameras and phones see no scan lines, which matters for conference recording and broadcast.
- > 500 nits, IP43: indoor brightness with a sealed front, so the panel reads cleanly under office lighting without blinding the room.
- Front service: a module is released from the front face, so a wall in a narrow reception area can be serviced without rear access.
- 100–240 V wide input: the same panel works on 110 V and 220 V sites without a different power option, and the Muen supply / Novastar control is shared with the rest of the range.
Specifications
| Parameter | Value |
|---|---|
| Model | AIAF-GOB1.86 |
| Pixel pitch | P1.86 |
| Cabinet size | 640 × 480 × 44 mm |
| Module size | 320 × 160 mm |
| Cabinet resolution | 344 × 258 = 88,752 pixels |
| Brightness | > 500 nits |
| Refresh rate | 7,680 Hz |
| Scan mode | 1/43 |
| Waterproof class | IP43 |
| Usage | Indoor |
| Maintenance | Front service |
| Input voltage | 100–240 VAC, 50–60 Hz |
| Power brand | Muen |
| Control system | Novastar |
| Series | AIAF GOB series |
Applications
Corporate reception walls, meeting and conference rooms, control and command rooms, retail interiors, hotel lobbies, exhibition stands and museum or gallery installations — indoor positions where the screen is looked at closely and has to stay serviceable.
Ordering Notes
- Price on request — this model is quoted per project.
- Other pitches of the AIAF GOB series are listed separately; cabinet sizes share the same module.
- Send the opening dimensions and viewing distance for a cabinet layout drawing.
FAQ
Q: What is the AIAF-GOB1.86?
A: The AIAF-GOB1.86 is a 640 × 480 × 44 mm indoor fixed LED cabinet at P1.86 from the AIAF GOB series, carrying 344 × 258 = 88,752 pixels. It is the GOB fine-pitch panel build: front service, IP43, > 500 nits and 7,680 Hz.
Q: Front service or rear service?
A: Front service. That matters when the wall is fixed to a solid surface with no rear access — everything is changed from the front face.
Q: What does GOB mean and why does it matter?
A: GOB is glue-on-board: a transparent encapsulant is poured over the LED face. It stops pins being damaged by a knocked chair or a cleaning cloth, protects against humidity and dust, and makes the surface wipe-clean — which is why it is used on walls people can touch.
Q: What drives it?
A: A standard Novastar system with Muen power supplies, on 100–240 VAC, 50–60 Hz input. No proprietary player — the same sending card you use elsewhere in the building drives it.
Q: Can it be built to a different size?
A: The cabinet is 640 × 480 × 44 mm and the module is 320 × 160 mm, so a wall is always a whole number of cabinets plus a border where needed. Send the finished dimensions and we return a layout drawing with the cabinet count and the fixing points.
