P8 — Indoor LED Crystal Core Transparent Screen

The P8 is an indoor crystal core transparent screen: a see-through LED film supplied on a 1200 × 240 mm module with 150 × 30 = 4,500 pixels, > 2,000 nits of brightness and 3,840 Hz refresh. At 0.8 mm thin and 0.3 kg per module it is applied straight onto glass with adhesive, so a shop window, showroom partition or hotel lobby keeps its daylight view while the image floats on the glass. No steel frame, no drilling, no construction work.

Key Features

• Crystal core transparent LED: the display sits on a fine transparent substrate, so the glass behind it stays visible and the screen almost disappears when it is black.
• 8 mm pitch on a 1200 × 240 mm module: 150 × 30 = 4,500 pixels per module — sized for close-to-mid viewing in shop windows, showrooms and lobbies.
• > 2,000 nits, 3,840 Hz: readable against daylight through the glass, and free of scan banding when filmed on a phone.

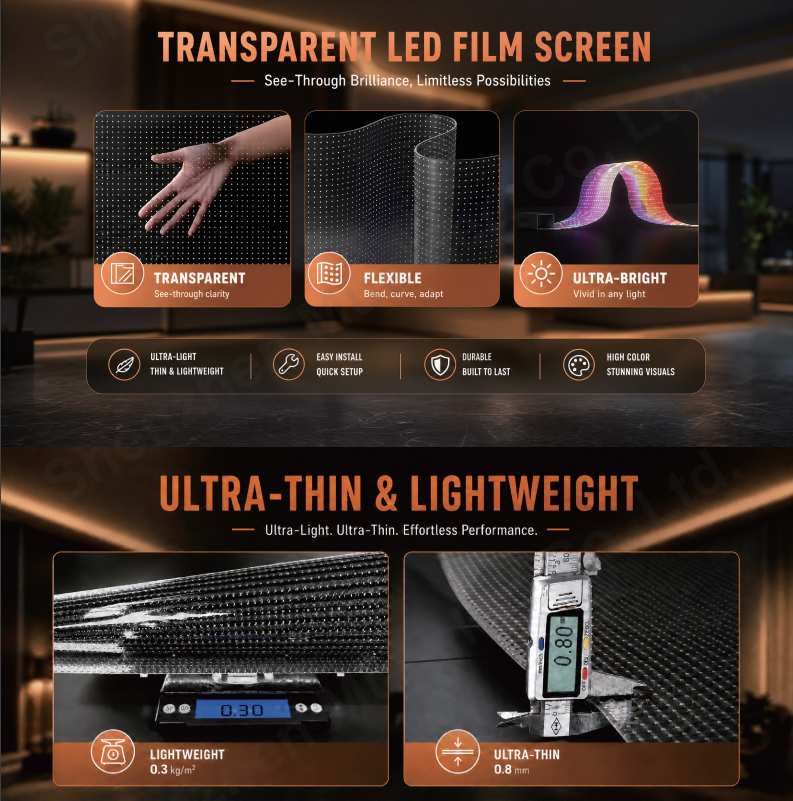

• 0.8 mm thin, 0.3 kg per module: light enough to hold on glass with adhesive, and thin enough to disappear into a window frame.
• Adhesive film installation: peel the protective film, spray the glass, apply the sheet, smooth it out and power on — no drilling, no steel structure, no construction permit.
• Front service: a failed module is released and replaced from the front face without dismantling the installation.
• Muen power supply, Novastar control: standard Novastar sending cards and software drive it, and content is loaded like any other LED screen.

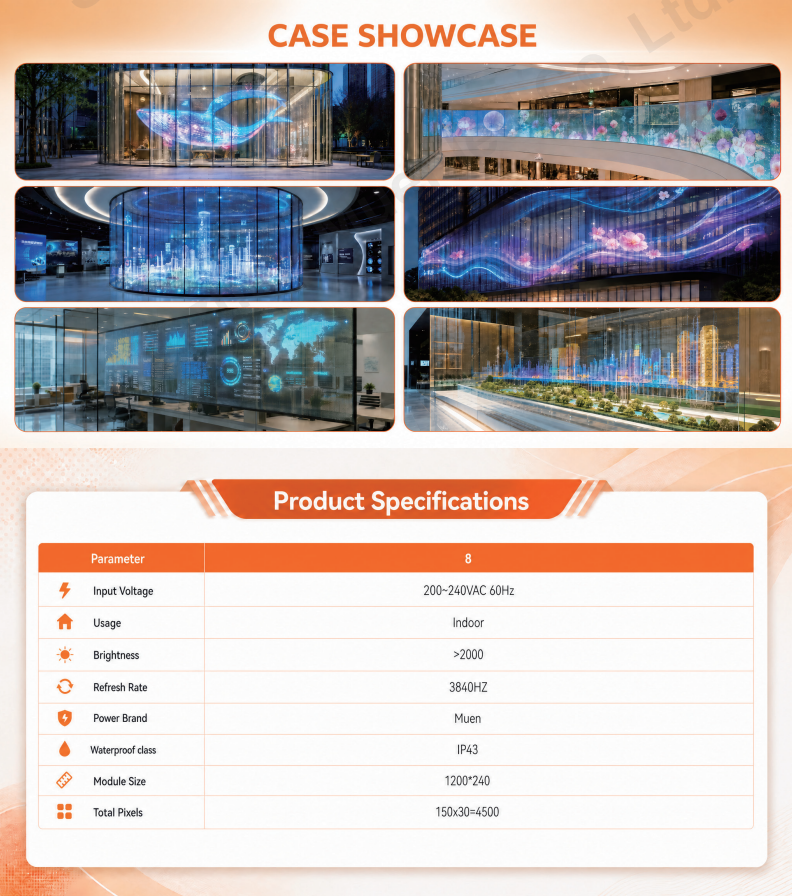

Specifications

Applications

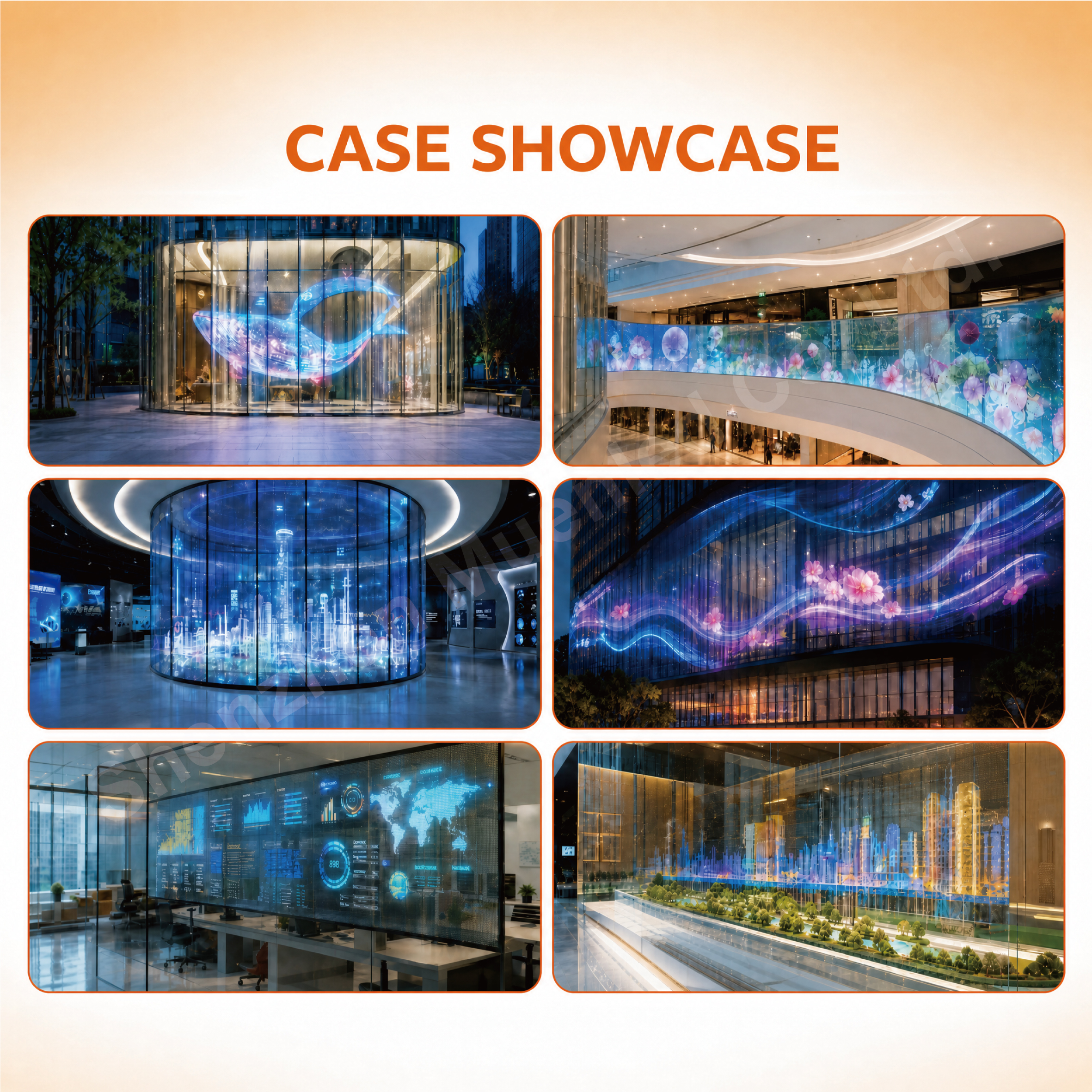

Retail shop windows and mall storefronts, brand showrooms, hotel and bank lobbies, exhibition booths, museum and gallery glass, restaurant and bar windows — anywhere the glass has to stay a window and still carry moving imagery.

Ordering Notes

• Price is per square metre; the screen is cut to the size of your glass.
• Send the glass dimensions and we will return a module layout drawing before production.
• Other pitches of the same crystal core series (P3.75 / P6 / P7.5 / P15 / P20 / P30) are listed separately.

FAQ

Q: What is the P8?
A: The P8 is an indoor transparent LED screen from the crystal core series: a 8 mm pitch film on a 1200 × 240 mm module with 150 × 30 = 4,500 pixels per module. It is a see-through display, so it is applied to glass rather than mounted on a frame, and the window behind it stays usable.

Q: How transparent is it, and does it block the view?
A: The crystal core substrate is an open transparent film: when the screen is off you see through it and the window reads as a window; when it is on, the image sits on the glass with the interior still visible behind it. Actual transparency depends on the pitch — a wider pitch such as P10 lets more light through than P5, which is why the wider pitches are used on large glass facades.

Q: How is it installed — do I need a frame?
A: No frame. The P8 is applied as an adhesive film: peel the protective layer, spray the glass, align the sheet, smooth it from top to bottom, connect the power box and cables, then power on. A crew can cover a shop window in a few hours without scaffolding.

Q: What drives it and how is content updated?
A: A standard Novastar system: a sending card feeds the modules and content is loaded from a PC or player over the usual Novastar software. Because refresh is 3,840 Hz the picture stays clean when customers film the window with a phone.

Q: Can it be used outdoors or on a very bright window?
A: This is the indoor version — IP43, rated for indoor glass and shop windows. For a facade that faces direct sun or weather, use the outdoor section-bar transparent series instead; tell us the orientation and we will specify the right build and brightness.
