描述

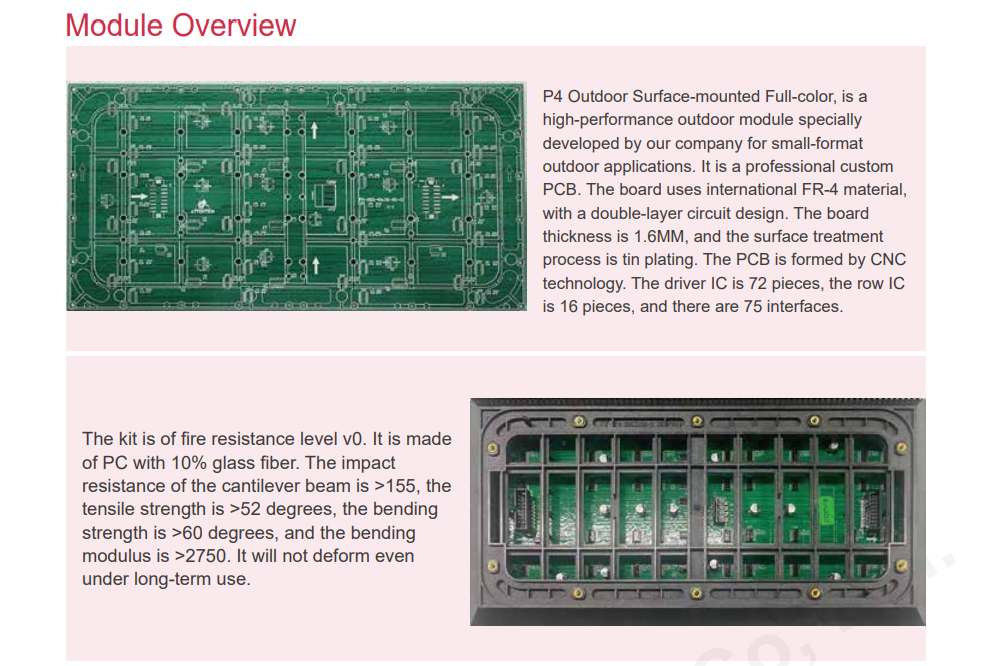

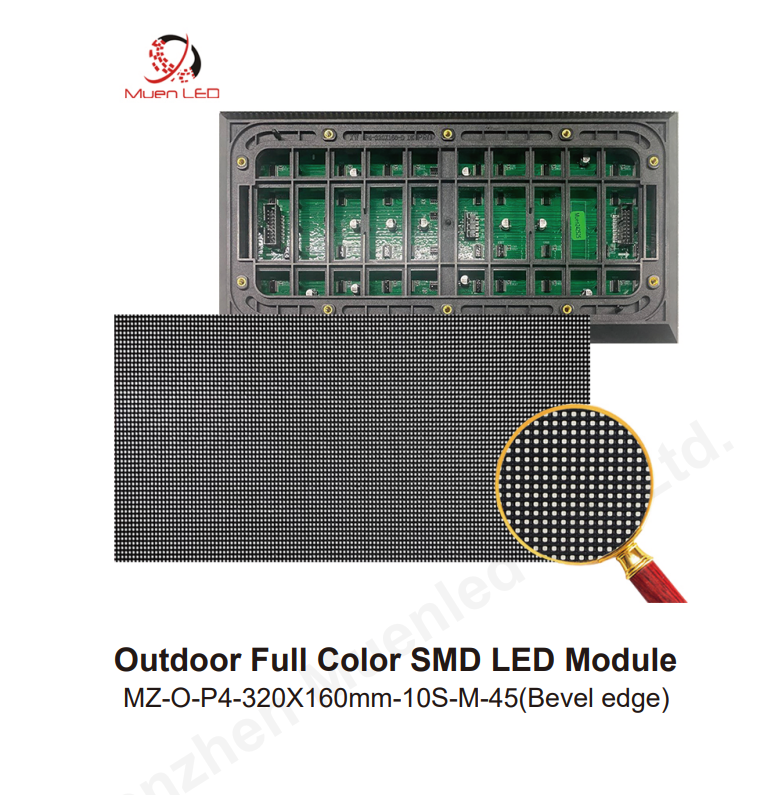

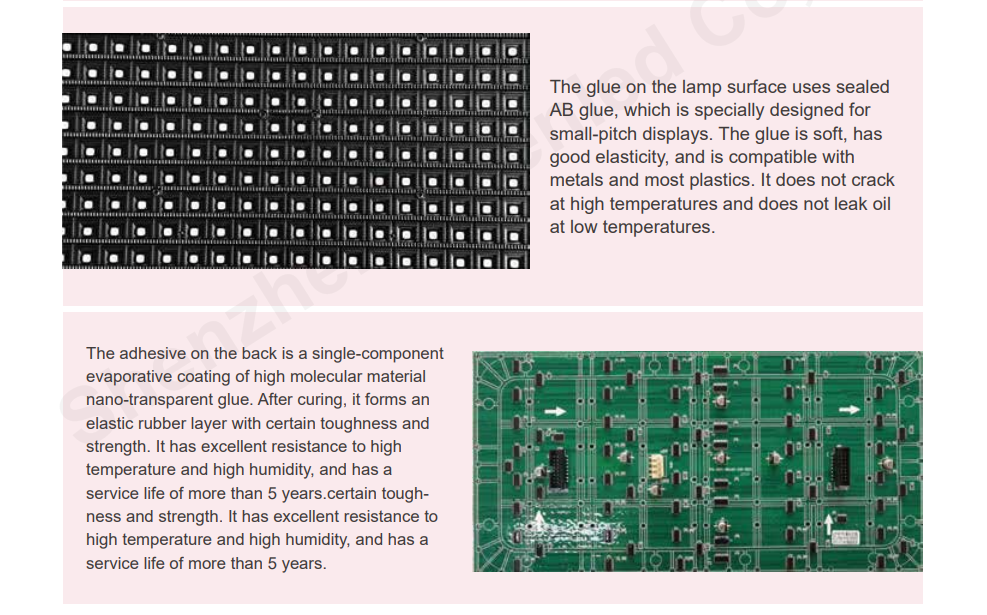

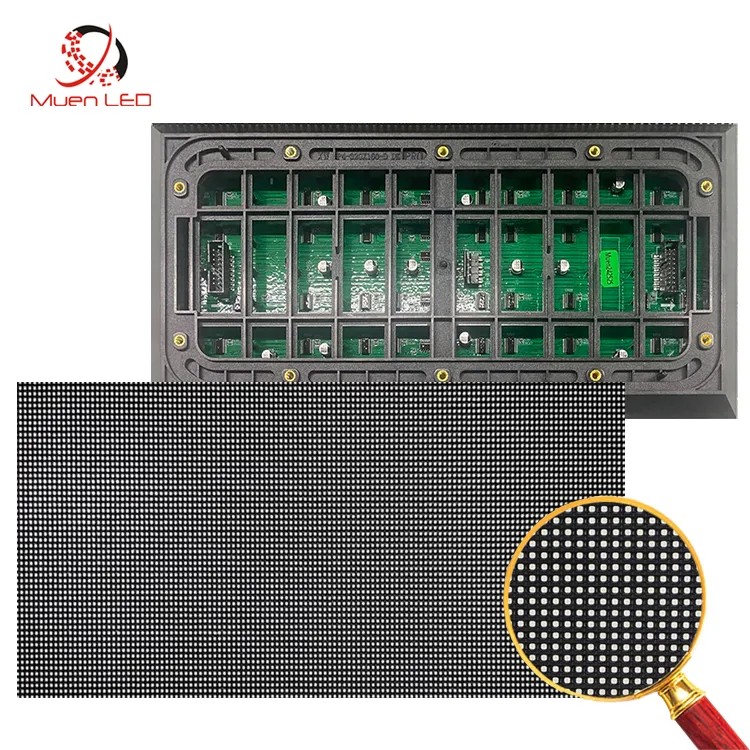

MZ-O-P4-320X160mm-10S-M-45beveled edge is a outdoor LED display module measuring 320 × 160 mm, with a pixel pitch of 4 mm and a 1/10 scan. It is a replacement / build module for outdoor LED screens, supplied with the lamp package (SMD1921) and driver configuration stated in the specification table below.
Key Feature
- Pixel pitch 4 mm: an outdoor module balanced for viewing distances of several metres and beyond, keeping the screen cost-effective.
- 1/10 scan: the scanning ratio matches the module size and pitch, driving the LED at the correct duty cycle for stable, even brightness.
- SMD1921 lamp package with high brightness output.
- >4000 nits brightness — bright enough for direct sunlight when used with the matching outdoor cabinet.
- 80 × 40 = 3,200 pixels per module, with 6 A module current at 5 V DC.
- 45° beveled edge — the chamfered outline lets modules turn a corner cleanly, for 90° cabinets, columns and other right-angle shapes.
Specifications

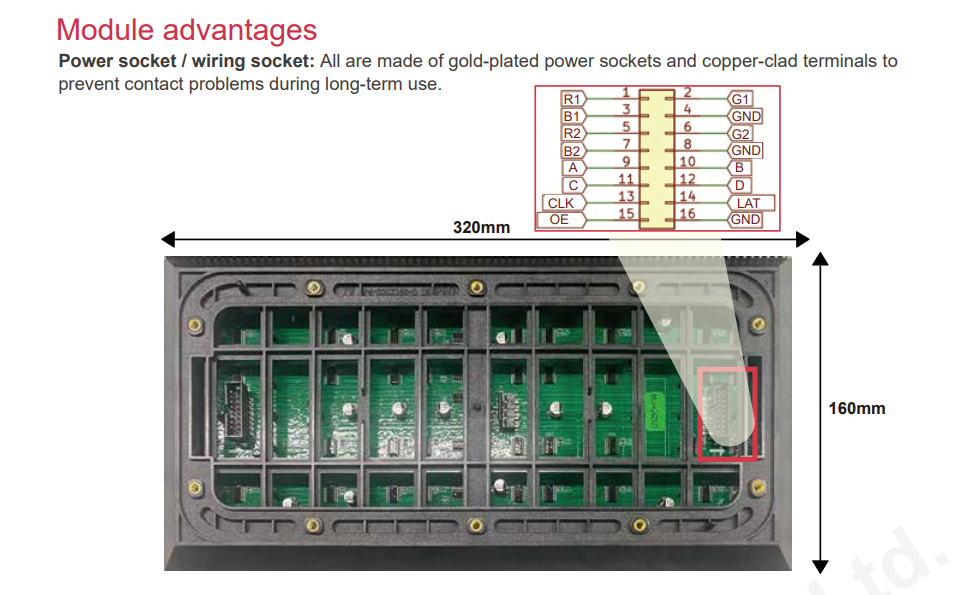

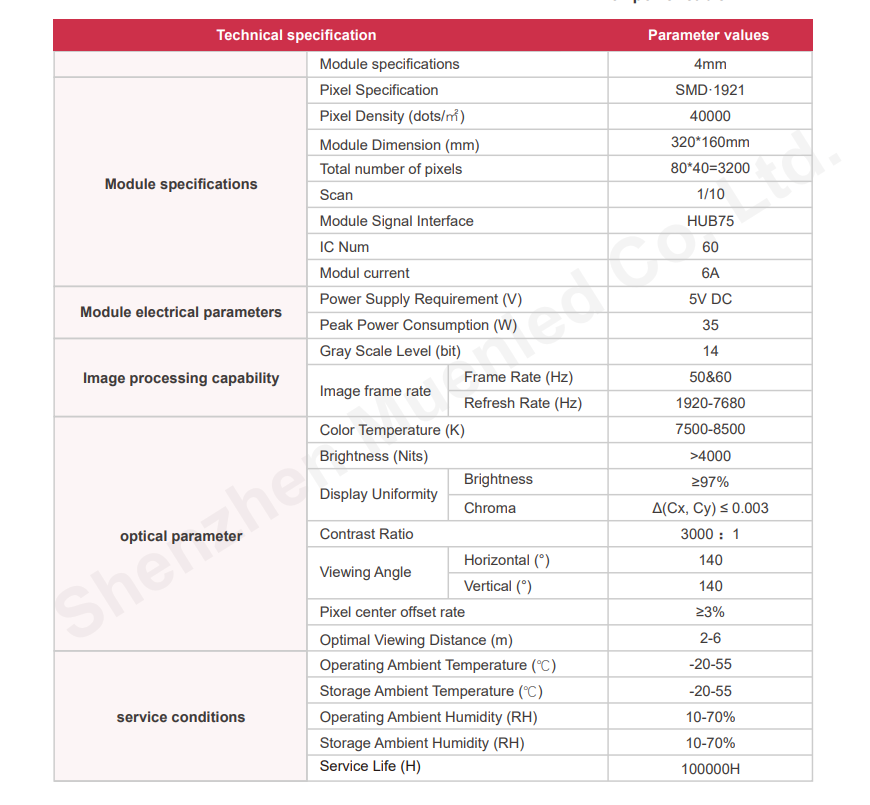

| ModelMZ-O-P4-320X160mm-10S-M-45斜边 |
| UsageOutdoor |
| Pixel pitch4 mm |
| Lamp packageSMD1921 |
| Module size320 × 160 mm |
| IC quantity60 |
| Scan1/10 |
| Total pixels80 × 40 = 3,200 |
| Brightness>4000 nits |
| Module current6 A |
| Input voltage5 V DC |
| Special feature45° beveled edg |
Applications
Outdoor advertising screens, building facades, roadside billboards, stadium perimeter screens and street furniture — any outdoor installation built from 250 × 250 mm or 320 × 160 mm modules.
Fits standard cabinet frames that accept 320 × 160 mm modules, so it can be used for new builds or to replace damaged modules in an existing screen.
Ordering Notes
- Price shown is per single module; volume discounts apply for larger quantities. Modules are normally ordered in the quantity needed to fill a screen, plus spares.
- Receiving cards, power supplies, cabinets and hubs can be quoted together with the modules — tell us the screen size and we will work out the bill of materials.
- Please confirm the driver IC and lamp package against your existing screen before ordering if you are replacing modules in an existing installation.
FAQ
Q: What is the MZ-O-P4-320X160mm-10S-M-45斜边 used for?
A: It is a outdoor LED display module — the building block of an LED video screen. Measuring 320 × 160 mm with a 4 mm pixel pitch and 1/10 scan, it is used to build new outdoor screens or to replace damaged modules in an existing one.
Q: What are the main specifications of the MZ-O-P4-320X160mm-10S-M-45斜边?
A: 4 mm pixel pitch, SMD1921 lamp package, 320 × 160 mm module size, 1/10 scan, 80 × 40 = 3,200 pixels per module, brightness >4000 nits and a module current of 6 A at 5 V DC.
Q: Is it for indoor or outdoor use, and how bright is it?
A: This module is designed for outdoor use. Its brightness is >4000 nits, which stays readable in direct sunlight when fitted into the matching outdoor cabinet.
Q: How many modules do I need, and how is it installed?
A: Dividing your screen width and height by the 320 × 160 mm module size gives the module count — for example a 2 × 1 m screen needs roughly 40 pieces of a 320 × 160 mm module. Modules are fixed to the cabinet frame with magnets or screws and linked by ribbon data cables and power cables; we are happy to work out the full bill of materials for you.
Q: What power supply and controller does it need?

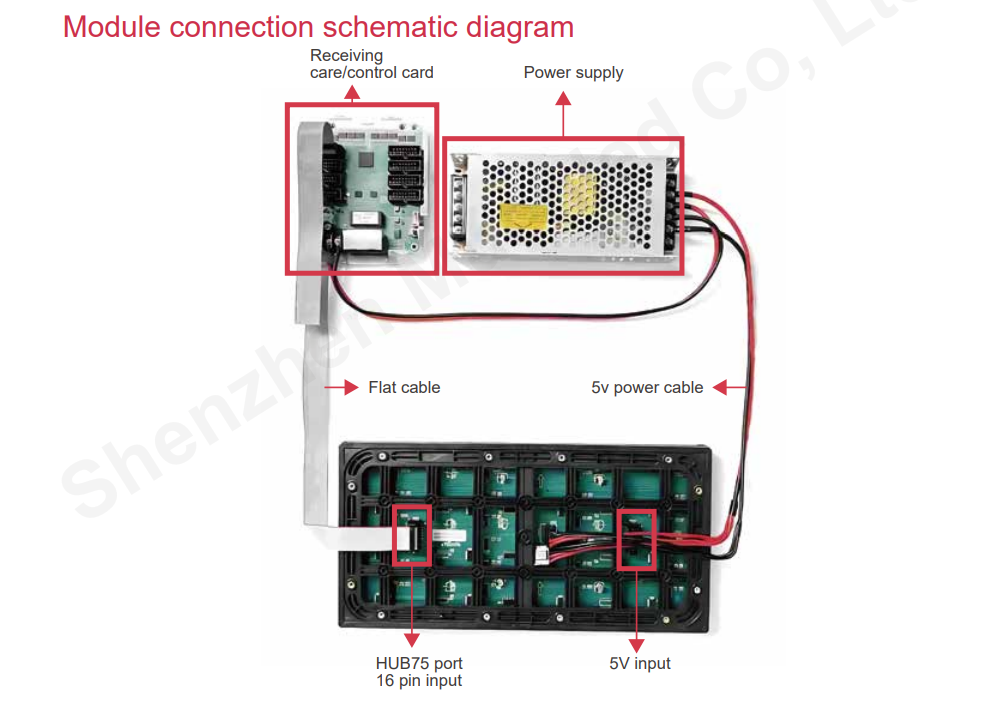

A: The module runs on 5 V DC and draws 6 A per module, so the power supply is sized from the total module count. Any standard LED receiving card that supports the module’s scan and driver IC can be used — tell us your existing control system and we will confirm compatibility.
