描述

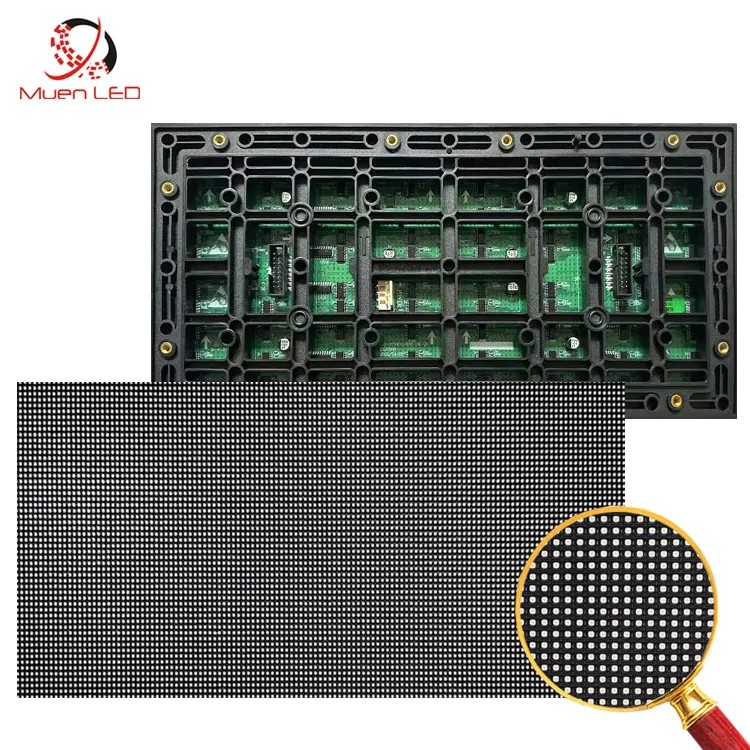

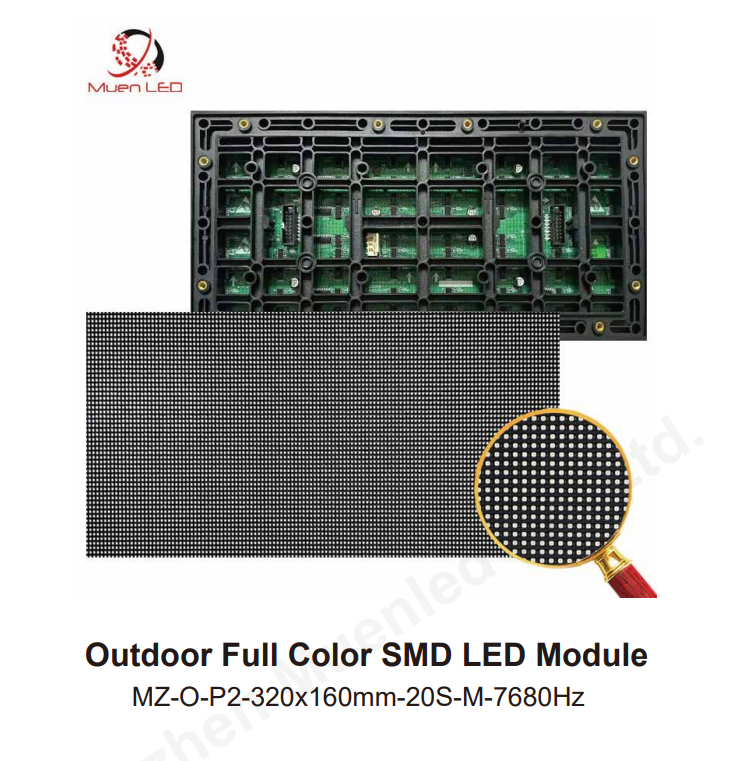

MZ-O-P2-320x160mm-20S-M-7680Hz is a outdoor LED display module measuring 320 × 160 mm, with a pixel pitch of 2 mm and a 1/20 scan. It is a replacement / build module for outdoor LED screens, supplied with the lamp package (SMD1212) and driver configuration stated in the specification table below.
Key Features
- Pixel pitch 2 mm: an outdoor module balanced for viewing distances of several metres and beyond, keeping the screen cost-effective.
- 1/20 scan: the scanning ratio matches the module size and pitch, driving the LED at the correct duty cycle for stable, even brightness.
- SMD1212 lamp package with high brightness output.
- >5000 nits brightness — bright enough for direct sunlight when used with the matching outdoor cabinet.
- 160 × 80 = 12,800 pixels per module, with 5 A module current at 5 V DC.
- 7680 Hz ultra-high refresh — no scan lines or flicker, even when filmed at high shutter speeds.

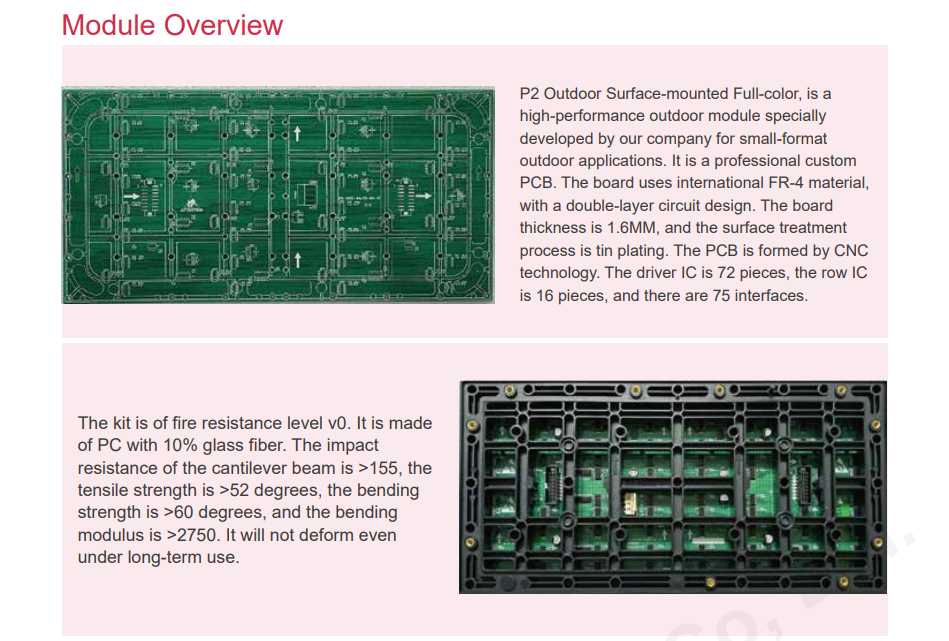

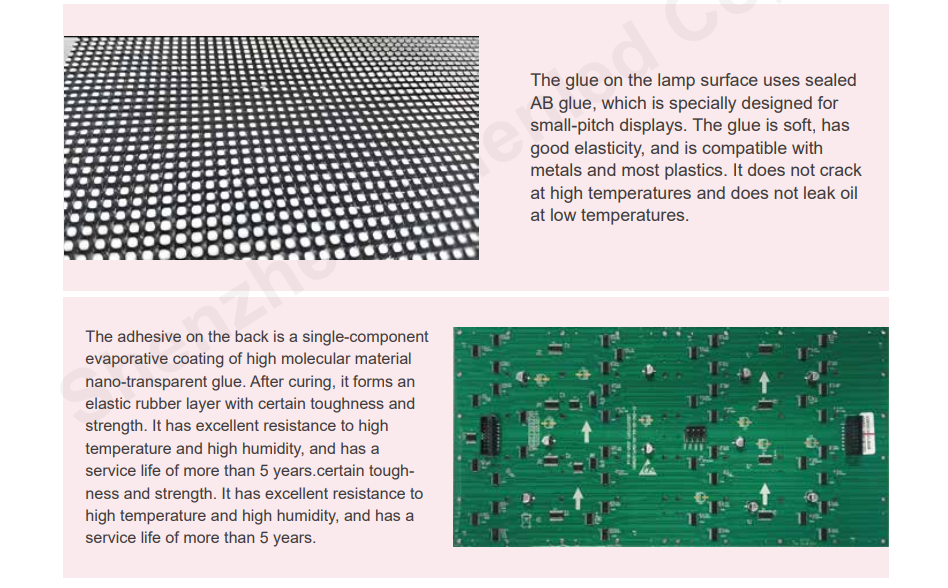

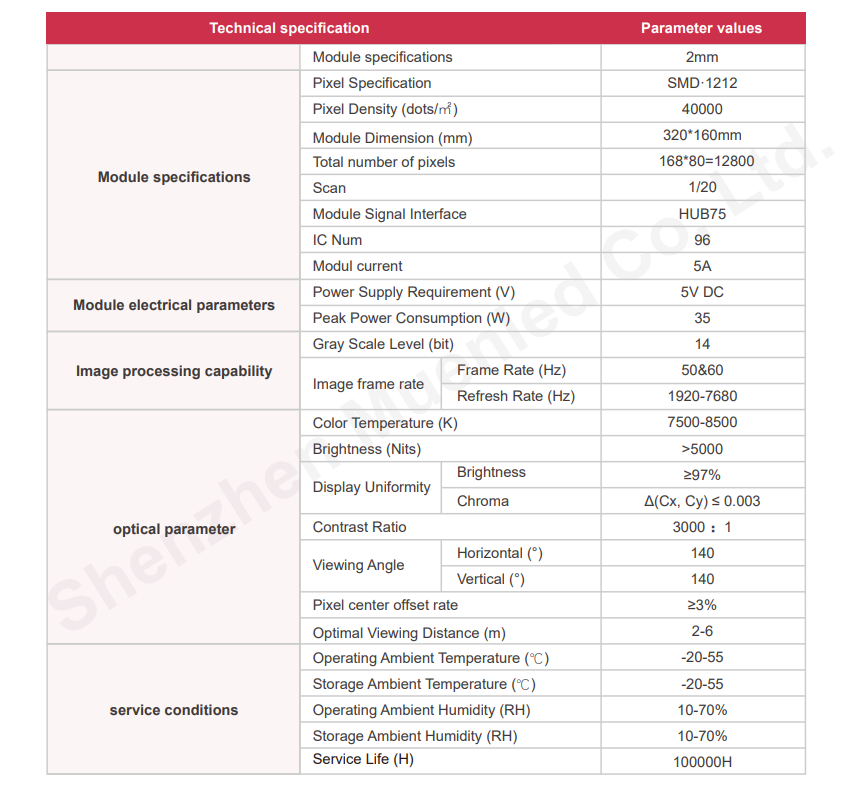

Specifications
| Model | MZ-O-P2-320x160mm-20S-M-7680Hz |
| Usage | Outdoor |
| Pixel pitch | 2 mm |
| Lamp package | SMD1212 |
| Module size | 320 × 160 mm |
| Scan | 1/20 |
| Total pixels | 160 × 80 = 12,800 |
| Brightness | >5000 nits |
| Module current | 5 A |
Applications
Outdoor advertising screens, building facades, roadside billboards, stadium perimeter screens and street furniture — any outdoor installation built from 250 × 250 mm or 320 × 160 mm modules.
Fits standard cabinet frames that accept 320 × 160 mm modules, so it can be used for new builds or to replace damaged modules in an existing screen.
Ordering Notes
- Price shown is per single module; volume discounts apply for larger quantities. Modules are normally ordered in the quantity needed to fill a screen, plus spares.
- Receiving cards, power supplies, cabinets and hubs can be quoted together with the modules — tell us the screen size and we will work out the bill of materials.
- Please confirm the driver IC and lamp package against your existing screen before ordering if you are replacing modules in an existing installation.
FAQ
Q: What is the MZ-O-P2-320x160mm-20S-M-7680Hz used for?
A: It is a outdoor LED display module — the building block of an LED video screen. Measuring 320 × 160 mm with a 2 mm pixel pitch and 1/20 scan, it is used to build new outdoor screens or to replace damaged modules in an existing one.
Q: What are the main specifications of the MZ-O-P2-320x160mm-20S-M-7680Hz?
A: 2 mm pixel pitch, SMD1212 lamp package, 320 × 160 mm module size, 1/20 scan, 160 × 80 = 12,800 pixels per module, brightness >5000 nits and a module current of 5 A at 5 V DC.
Q: Is it for indoor or outdoor use, and how bright is it?
A: This module is designed for outdoor use. Its brightness is >5000 nits, which stays readable in direct sunlight when fitted into the matching outdoor cabinet.
Q: How many modules do I need, and how is it installed?
A: Dividing your screen width and height by the 320 × 160 mm module size gives the module count — for example a 2 × 1 m screen needs roughly 40 pieces of a 320 × 160 mm module. Modules are fixed to the cabinet frame with magnets or screws and linked by ribbon data cables and power cables; we are happy to work out the full bill of materials for you.
Q: What power supply and controller does it need?

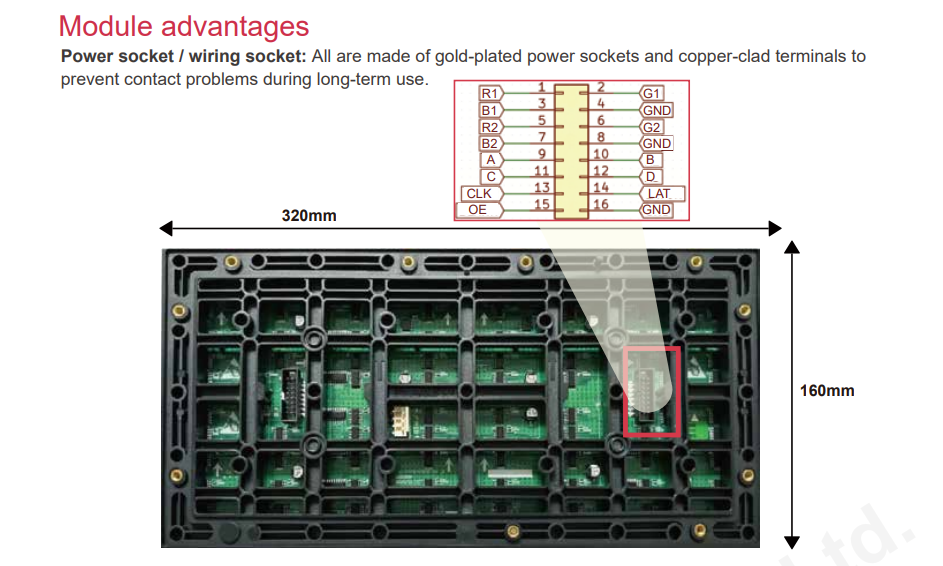

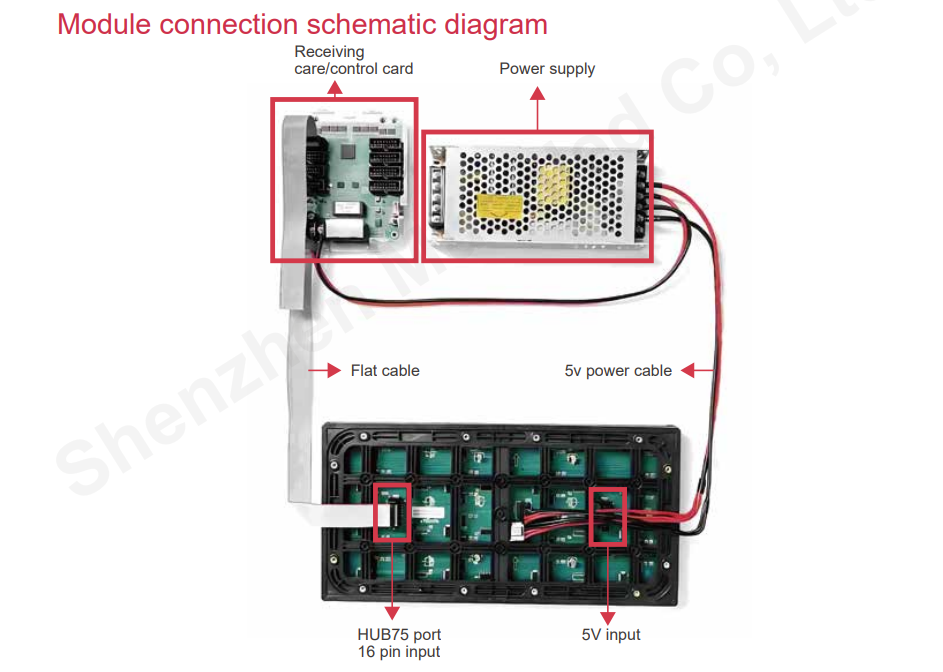

A: The module runs on 5 V DC and draws 5 A per module, so the power supply is sized from the total module count. Any standard LED receiving card that supports the module’s scan and driver IC can be used — tell us your existing control system and we will confirm compatibility.
