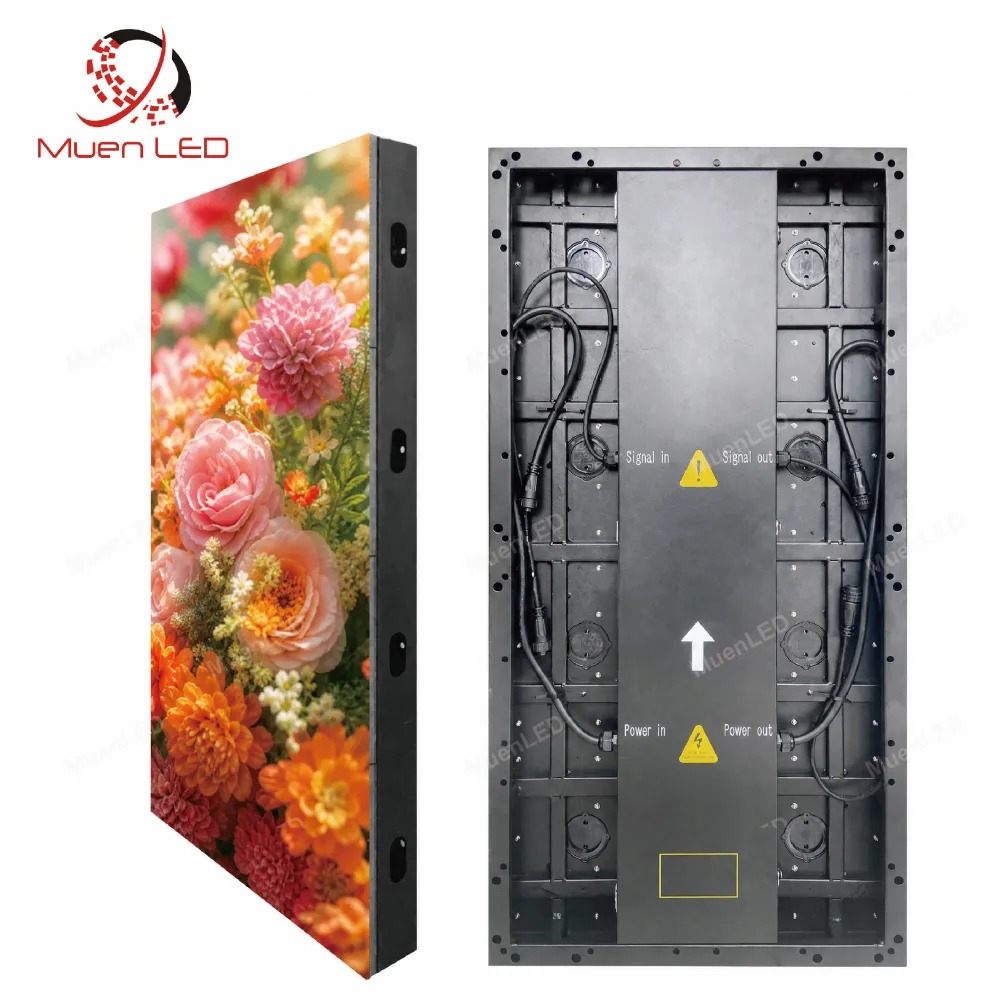

DZIC2.976 — Indoor LED floor tile

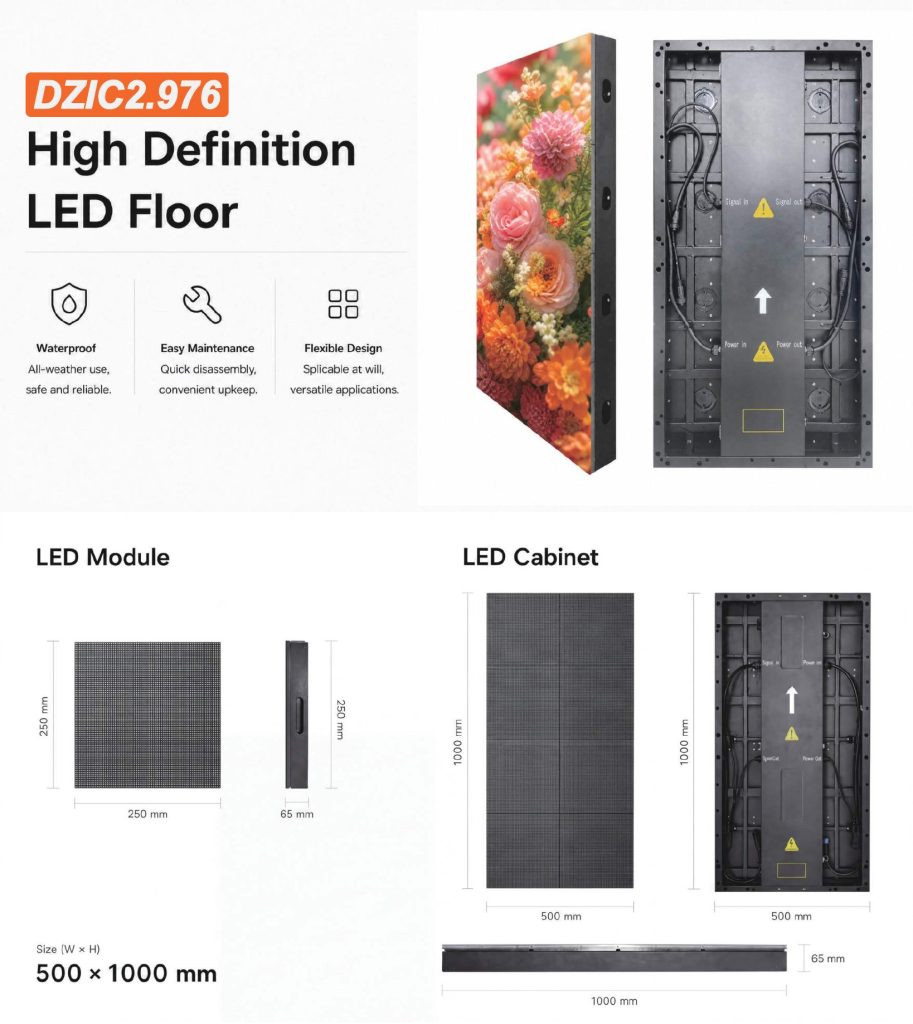

The DZIC2.976 is a 500 × 1000 × 65 mm indoor led floor tile at P2.976, carrying 168 × 336 = 56,448 pixels. > 2,000 nits, 3,840 Hz refresh and IP43 sealing, with rear service. a load-bearing 500 × 1000 × 65 mm cabinet with a slip-resistant, wear-resistant mask — the surface is designed for people to stand, dance and walk on it.
Key Features
- Walk-on construction: a load-bearing 500 × 1000 × 65 mm cabinet with a slip-resistant, wear-resistant mask — the surface is designed for people to stand, dance and walk on it.
- P2.976, 168 × 336 = 56,448 pixels: sharp enough that the floor reads as a continuous image underfoot.
- > 2,000 nits, 3,840 Hz: bright enough to compete with venue lighting and free of scan banding when guests film it.
- Standard playback version: the same cabinet and mask without the sensor layer, for floors that only need to play video.
- IP43 and rear service: sealed against dust and spills, with modules accessible from behind so the walking surface is not disturbed.
- Mosier control, Muen power supply: content is loaded and mapped like any other LED wall.

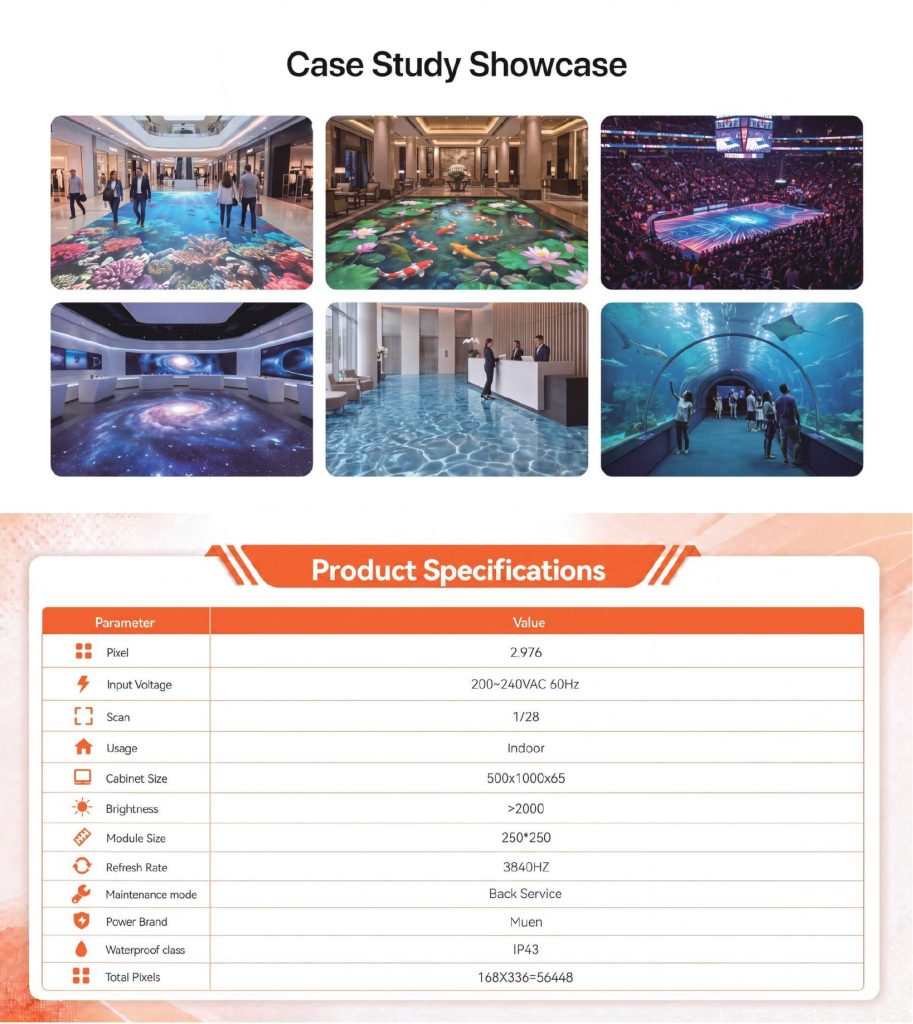

Specifications
| Parameter | Value |
|---|---|
| Model | DZIC2.976 |
| Pixel pitch | P2.976 |
| Cabinet size | 500 × 1000 × 65 mm |
| Cabinet resolution | 168 × 336 = 56,448 pixels |
| Brightness | > 2,000 nits |
| Refresh rate | 3,840 Hz |
| Scan mode | 1/28 |
| Waterproof class | IP43 |
| Usage | Indoor |
| Maintenance | Rear service |
| Input voltage | 200–240 VAC, 60 Hz |
| Power brand | Muen |
| Control system | Mosier |
Applications
Shopping-mall atriums and entrances, exhibition halls, museums and digital galleries, stage and club floors, hotel ballrooms, car launches and product reveals.
Ordering Notes
- Price on request — quoted per project and per square metre.
- Send the finished area and we will return a layout drawing with cabinet count and edge trims.
- Other pitches in the same cabinet size are listed separately.
FAQ
Q: What is the DZIC2.976?
A: DZIC2.976 is a walk-on indoor LED floor tile, 500 × 1000 × 65 mm at P2.976, carrying 168 × 336 = 56,448 pixels. The cabinet is load-bearing and the mask is slip-resistant, so the screen is the floor rather than something standing on it.
Q: Can people actually walk on it?
A: Yes — that is what it is built for. The cabinet carries the load, the mask protects the LEDs and provides grip, and the modules sit below the walking surface. It is used for dance floors, mall atriums and exhibition aisles.
Q: What is the difference between the interactive and standard versions?
A: The interactive version carries a sensor layer that detects where a person steps and drives the effect under that foot in real time — ripples, light pools, games. The standard version plays video only. Cabinets, mask, pitch and brightness are otherwise identical, so both can be mixed in one floor.
Q: How is it installed and serviced?
A: Cabinets align edge to edge on a flat sub-floor; the surface stays continuous. Service is rear service, so a module is changed without pulling up the surrounding floor.
Q: Can it be used outdoors?
A: This is the indoor build. Outdoor floor screens exist with a different load and sealing specification — tell us the location and the foot traffic and we will quote the right version.
