AISE2 — Indoor Slim Front-Service Box P2

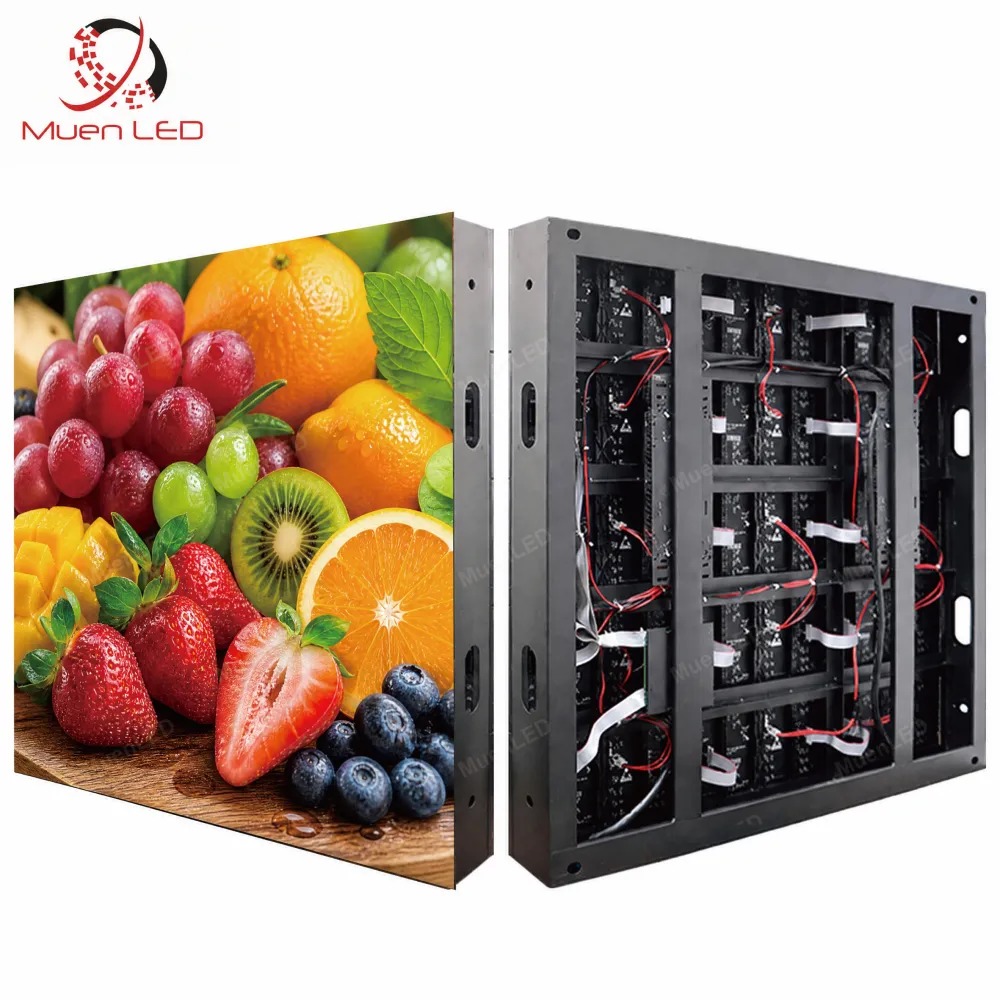

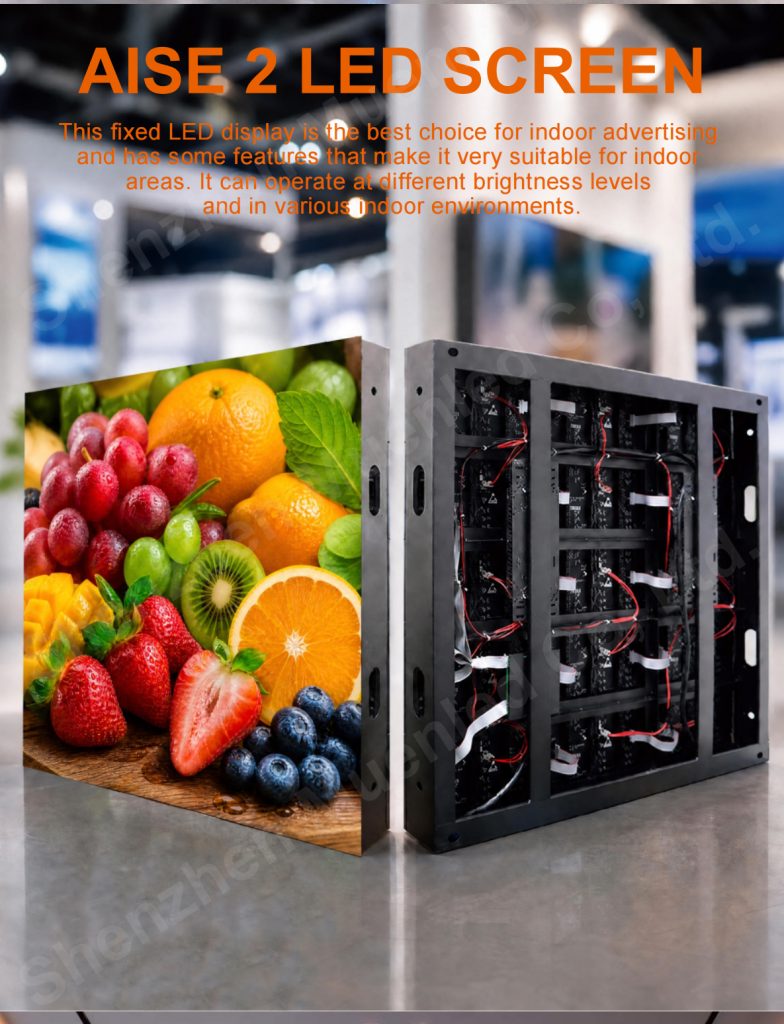

The AISE2 is a 960 × 960 × 80 mm indoor fixed LED slim front-service box: 480 × 480 = 230,400 pixels at P2, > 600 nits, 1,920 Hz refresh and IP43 sealing, with front service. It belongs to the AISE series, so cabinets bought for different jobs share the same module, power supply and control platform — stock and spares stay interchangeable.
Key Features
- 80 mm slim box: the AISE cabinet is 20 mm thinner than the standard AIS box, which is what lets the finished wall sit closer to the surface behind it.
- Front service: modules are released from the front — the right choice when the wall is fixed to a solid wall, a lift lobby or a shopfront with no rear access.
- P2, 480 × 480 = 230,400 pixels in a 960 × 960 × 80 mm cabinet: a 960 × 960 cabinet that builds a wall in even steps without cutting modules.
- > 600 nits, 1,920 Hz: indoor brightness and a refresh rate that keeps the picture clean on camera.
- IP43 sealed front: dust and splash protection for indoor public spaces.
- Muen power supply, Novastar control: standard sending cards and software, no proprietary player.

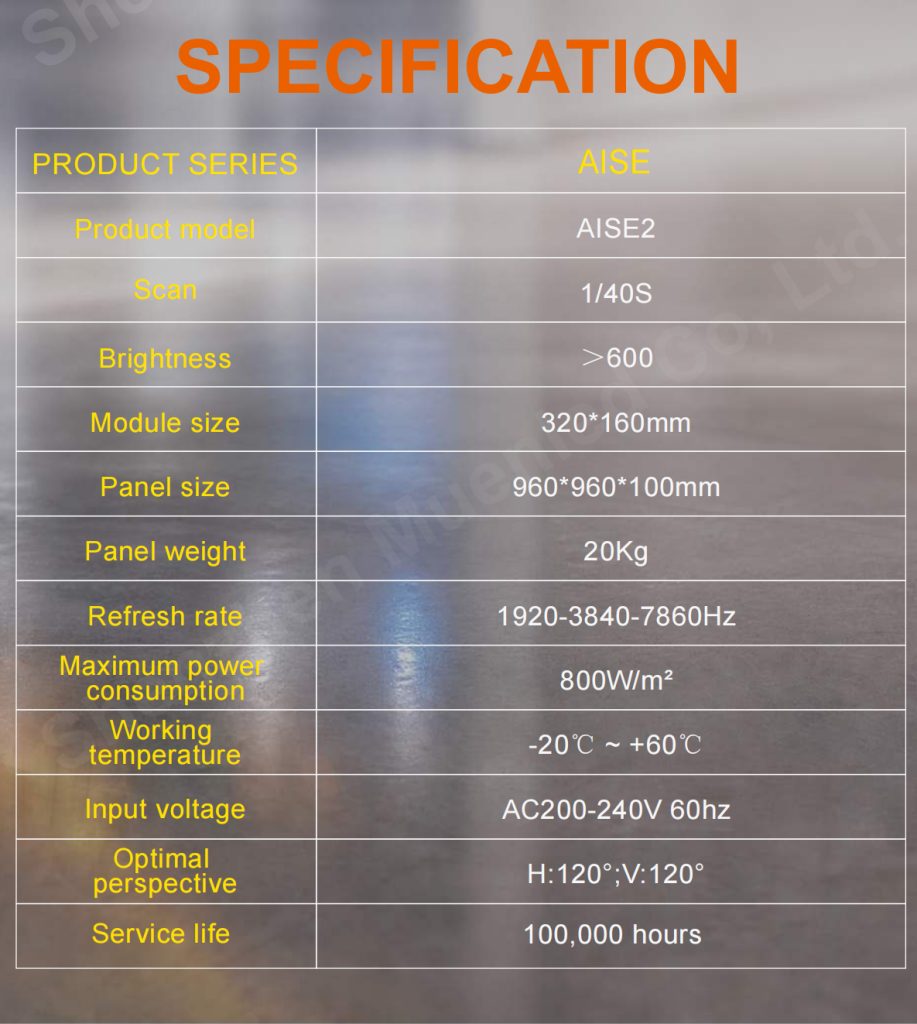

Specifications
| Parameter | Value |
|---|---|
| Model | AISE2 |
| Pixel pitch | P2 |

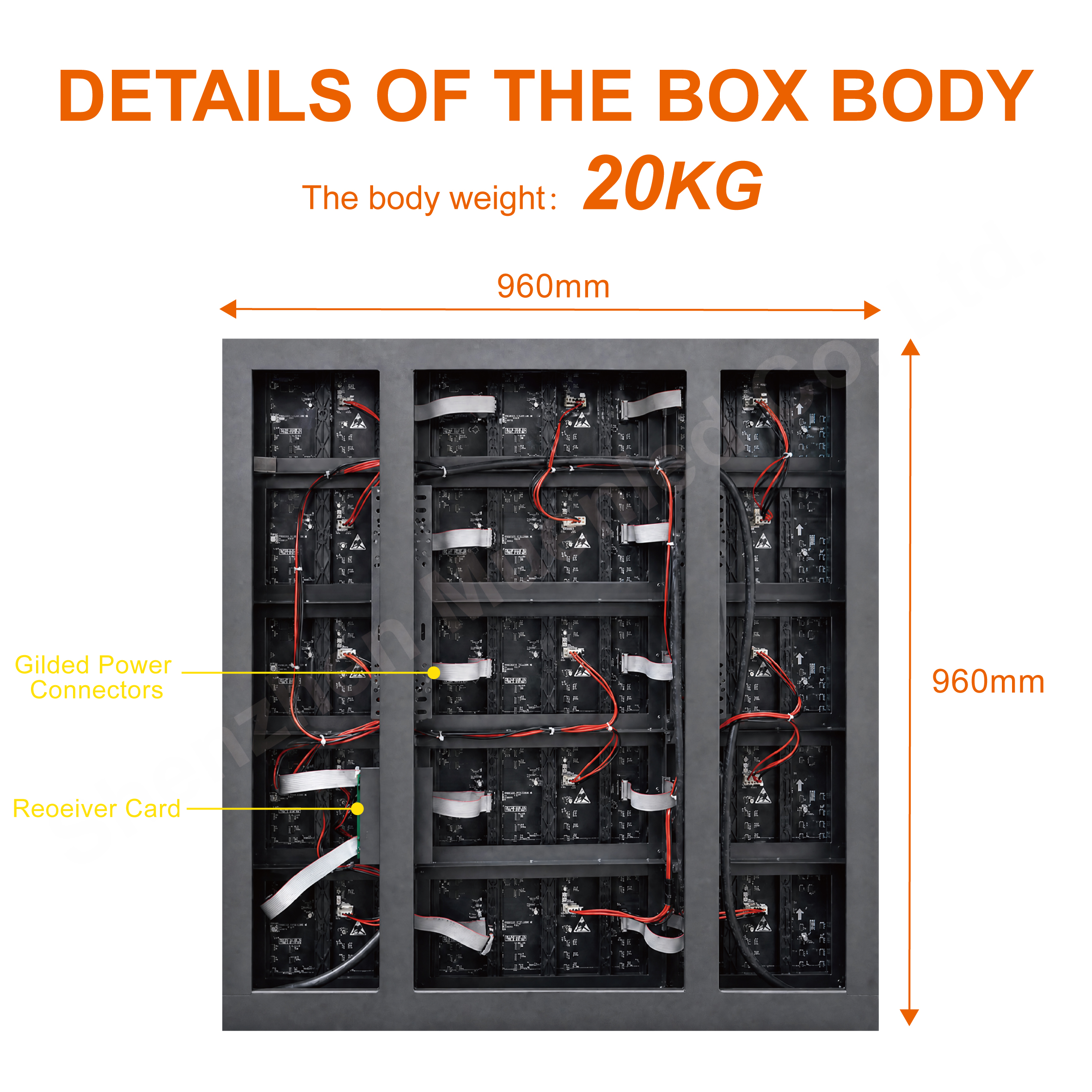

| Cabinet size | 960 × 960 × 80 mm |
| Module size | 320 × 160 mm |
| Cabinet resolution | 480 × 480 = 230,400 pixels |
| Brightness | > 600 nits |
| Refresh rate | 1,920 Hz |
| Scan mode | 1/40 |
| Waterproof class | IP43 |
| Usage | Indoor |
| Maintenance | Front service |
| Input voltage | 200–240 VAC, 60 Hz |
| Power brand | Muen |
| Control system | Novastar |
| Series | AISE series |
Applications
Corporate reception walls, meeting and conference rooms, control and command rooms, retail interiors, hotel lobbies, exhibition stands and museum or gallery installations — indoor positions where the screen is looked at closely and has to stay serviceable.
Ordering Notes
- Price on request — this model is quoted per project.
- Other pitches of the AISE series are listed separately; cabinet sizes share the same module.
- Send the opening dimensions and viewing distance for a cabinet layout drawing.
FAQ
Q: What is the AISE2?
A: The AISE2 is a 960 × 960 × 80 mm indoor fixed LED cabinet at P2 from the AISE series, carrying 480 × 480 = 230,400 pixels. It is the slim front-service box build: front service, IP43, > 600 nits and 1,920 Hz.
Q: Front service or rear service?
A: Front service. That matters when the wall is fixed to a solid surface with no rear access — everything is changed from the front face.
Q: What is the difference between AIS and AISE?
A: AIS is the standard 100 mm rear-service box; AISE is the 80 mm slim box with front service. Same module, same pitch, same control — the choice comes down to depth and to which side you can open.
Q: What drives it?
A: A standard Novastar system with Muen power supplies, on 200–240 VAC, 60 Hz input. No proprietary player — the same sending card you use elsewhere in the building drives it.
Q: Can it be built to a different size?
A: The cabinet is 960 × 960 × 80 mm and the module is 320 × 160 mm, so a wall is always a whole number of cabinets plus a border where needed. Send the finished dimensions and we return a layout drawing with the cabinet count and the fixing points.
