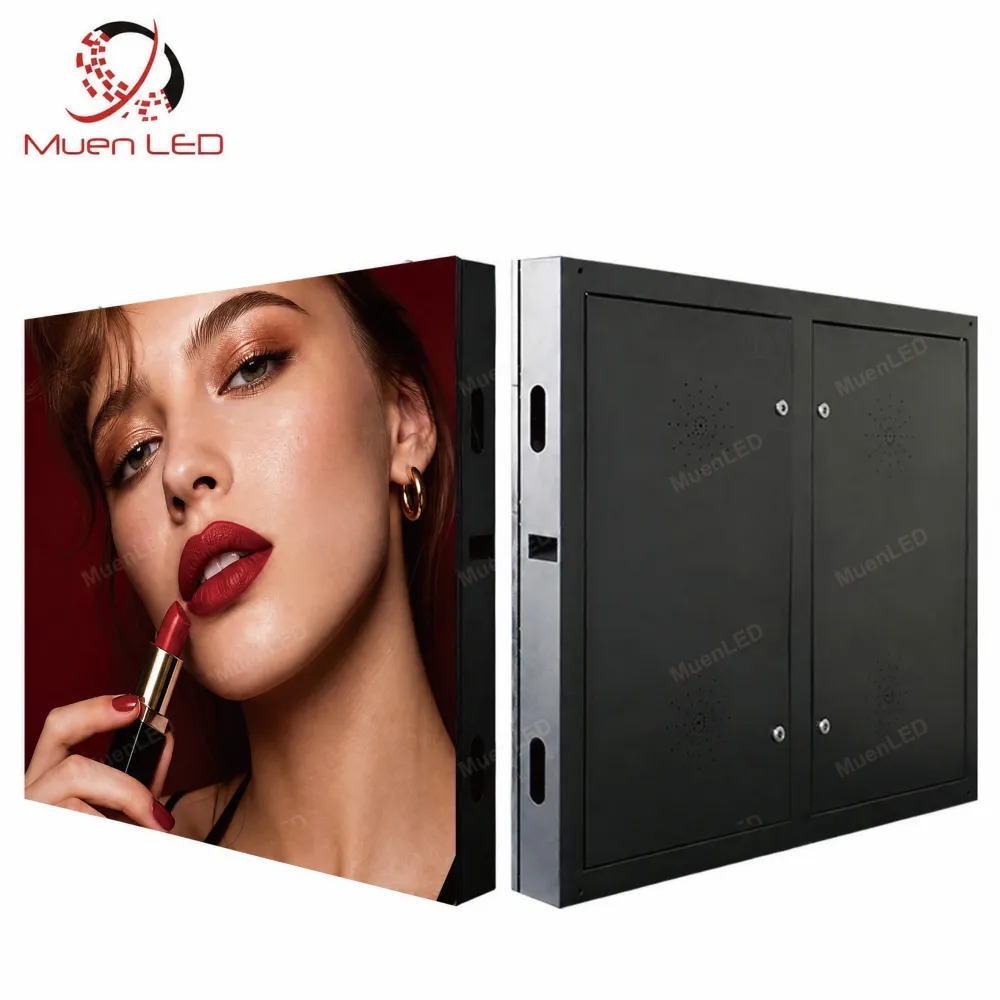

AIS2 — Indoor Standard Box P2
The AIS2 is a 960 × 960 × 100 mm indoor fixed LED standard box: 480 × 480 = 230,400 pixels at P2, > 600 nits, 1,920 Hz refresh and IP43 sealing, with rear service. It belongs to the AIS series, so cabinets bought for different jobs share the same module, power supply and control platform — stock and spares stay interchangeable.
Key Features

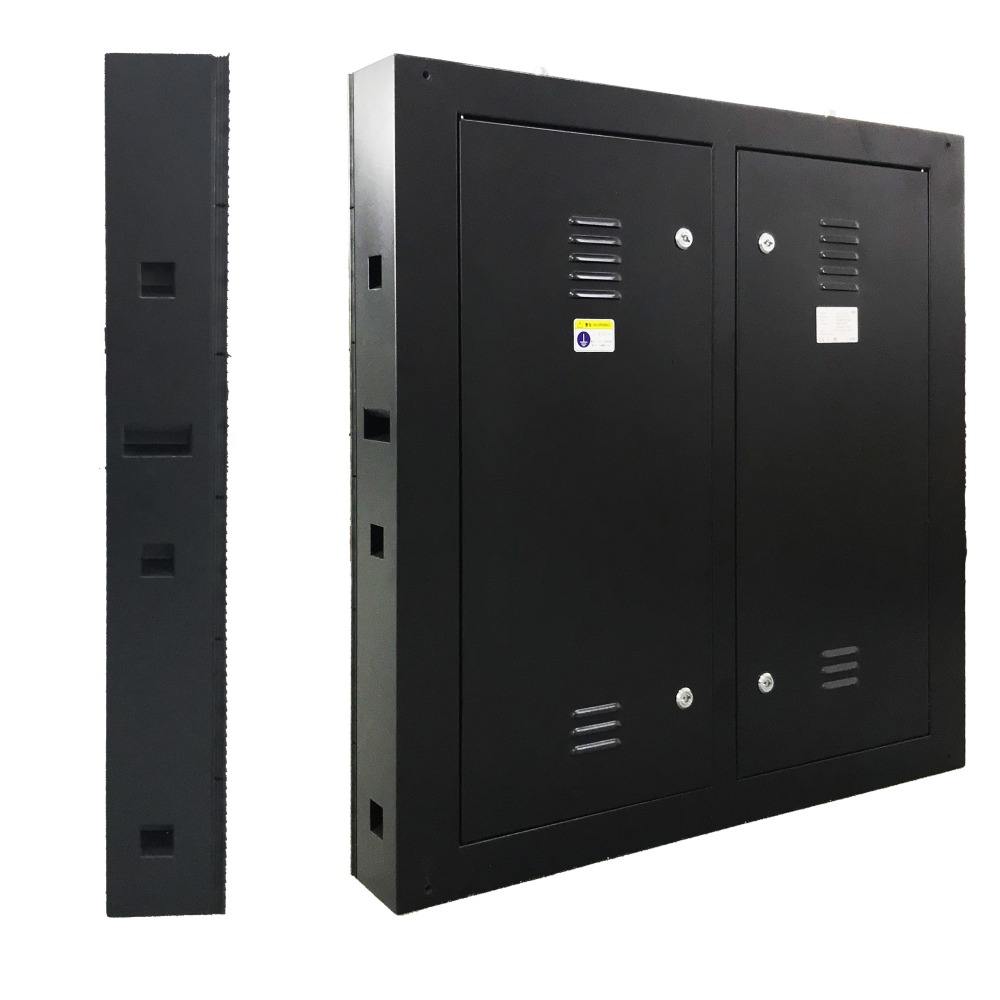

- 960 × 960 × 100 mm standard cabinet: the AIS build — a deeper body that leaves room for power supplies and receiver cards and takes rear service.
- P2, 480 × 480 = 230,400 pixels: detailed enough for advertising and information walls read from a few metres away.
- > 600 nits, 1,920 Hz refresh: indoor brightness with a refresh rate that keeps phone video free of banding.

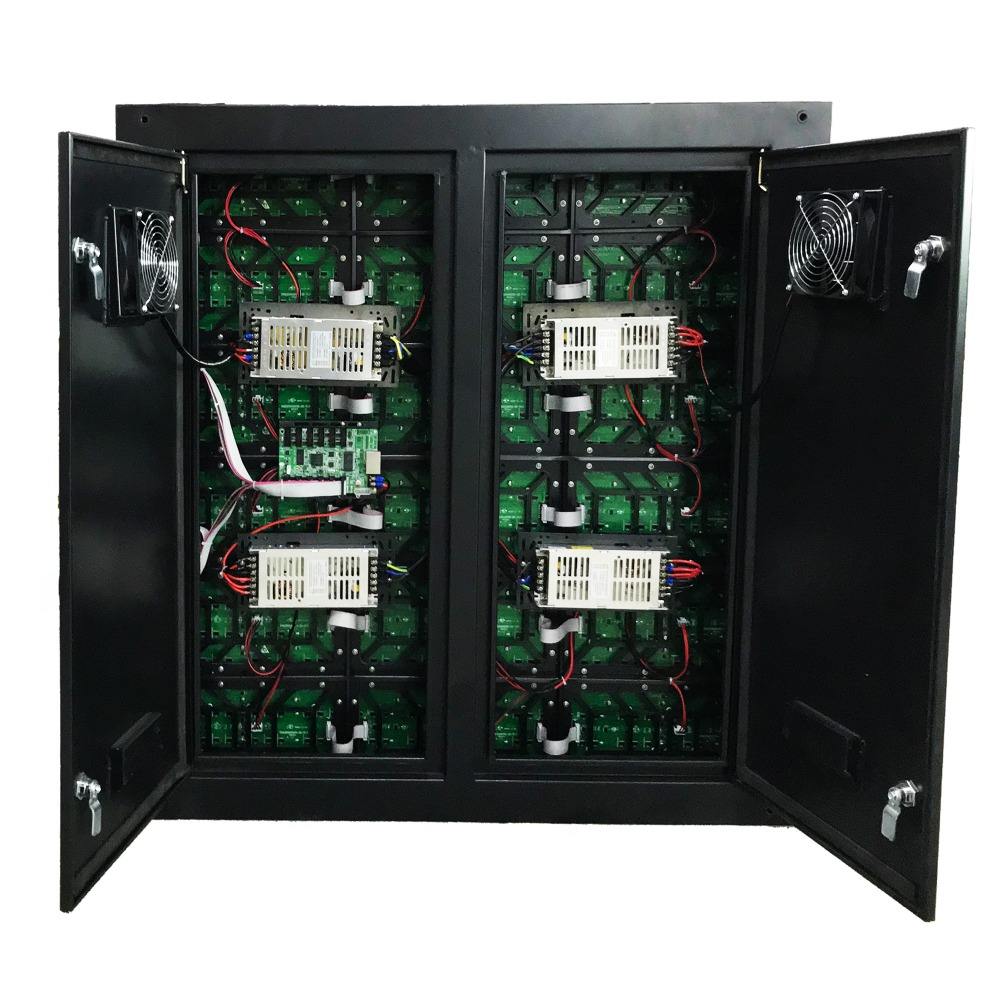

- Rear service: modules and electronics are reached from behind, so the front face stays a clean uninterrupted surface.
- IP43: sealed against dust and light splashes in indoor public areas.
- Muen power supply, Novastar control: the same control platform as the rest of the indoor fixed range.
Specifications
| Parameter | Value |
|---|---|
| Model | AIS2 |
| Pixel pitch | P2 |
| Cabinet size | 960 × 960 × 100 mm |
| Module size | 320 × 160 mm |
| Cabinet resolution | 480 × 480 = 230,400 pixels |
| Brightness | > 600 nits |
| Refresh rate | 1,920 Hz |
| Scan mode | 1/40 |
| Waterproof class | IP43 |
| Usage | Indoor |
| Maintenance | Rear service |
| Input voltage | 200–240 VAC, 60 Hz |
| Power brand | Muen |
| Control system | Novastar |
| Series | AIS series |
Applications
Corporate reception walls, meeting and conference rooms, control and command rooms, retail interiors, hotel lobbies, exhibition stands and museum or gallery installations — indoor positions where the screen is looked at closely and has to stay serviceable.
Ordering Notes
- Price on request — this model is quoted per project.
- Other pitches of the AIS series are listed separately; cabinet sizes share the same module.
- Send the opening dimensions and viewing distance for a cabinet layout drawing.
FAQ
Q: What is the AIS2?
A: The AIS2 is a 960 × 960 × 100 mm indoor fixed LED cabinet at P2 from the AIS series, carrying 480 × 480 = 230,400 pixels. It is the standard box build: rear service, IP43, > 600 nits and 1,920 Hz.
Q: Front service or rear service?
A: Rear service. Plan for a rear access gap behind the wall; in exchange the front face stays completely clean.
Q: What is the difference between AIS and AISE?
A: AIS is the standard 100 mm rear-service box; AISE is the 80 mm slim box with front service. Same module, same pitch, same control — the choice comes down to depth and to which side you can open.
Q: What drives it?
A: A standard Novastar system with Muen power supplies, on 200–240 VAC, 60 Hz input. No proprietary player — the same sending card you use elsewhere in the building drives it.
Q: Can it be built to a different size?
A: The cabinet is 960 × 960 × 100 mm and the module is 320 × 160 mm, so a wall is always a whole number of cabinets plus a border where needed. Send the finished dimensions and we return a layout drawing with the cabinet count and the fixing points.
