NovaStar VX1000 Pro Video Processor: Quick Start Guide and Core Function Analysis
In this guide, we will take you through the essential functions and operations of the NovaStar VX1000 Pro, a versatile all-in-one LED controller designed for professional-grade applications. With its robust performance, advanced video processing capabilities, and flexible control options, the NovaStar VX1000 Pro is ideal for medium to high-end rental systems, stage displays, and fine-pitch LED screens.
1.Overview of NovaStar VX1000 Pro

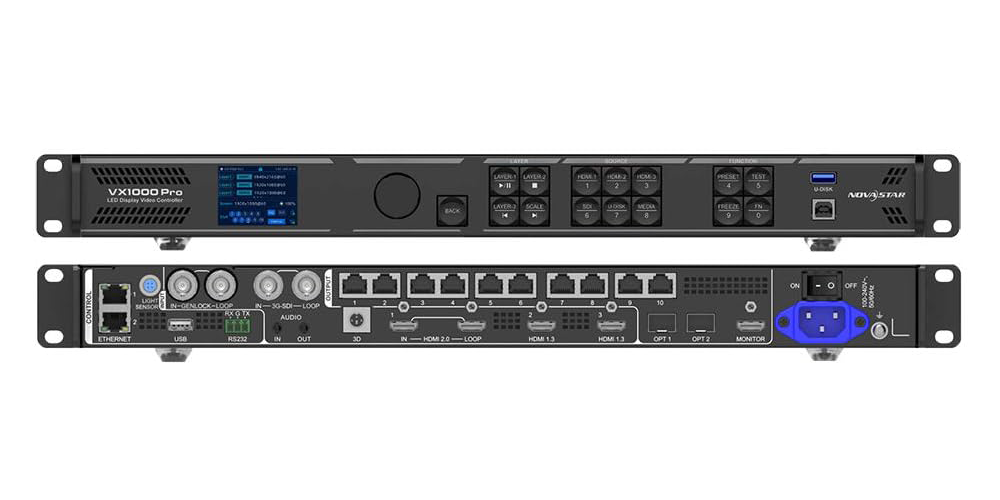

The NovaStar VX1000 Pro is an all-in-one controller that combines video processing and control functionalities into a single device. Designed for on-site LED screen management, it supports up to 6.5 million pixels, with a maximum output width of 10,240 pixels and height of 8,192 pixels. This makes it perfectly suited for controlling ultra-wide or ultra-high LED displays in demanding environments like concerts, exhibitions, and corporate events.
The device boasts multiple input connectors, including HDMI 2.0, 3G-SDI, and USB 3.0, ensuring compatibility with various video sources. Additionally, its low-latency feature and pixel-level brightness/chroma calibration ensure exceptional image quality. The NovaStar VX1000 Pro can be controlled via the front panel knob, NovaLCT software, Unico web interface, or VICP App, offering unparalleled flexibility.
2.Key Features of NovaStar VX1000 Pro
The NovaStar VX1000 Pro stands out due to its powerful features tailored for professional LED display setups:
2.1 All-in-One Design
By integrating video processing and control functions, the NovaStar VX1000 Pro eliminates the need for additional equipment, simplifying system architecture and enhancing deployment efficiency.
2.2 High Pixel Loading Capacity
With 10 Gigabit Ethernet ports, the NovaStar VX1000 Pro supports up to 6.5 million pixels. It can handle large LED screens while maintaining smooth operation and high-quality visuals.
2.3 Multi-Layer Display
Supports up to six layers (2K×1K resolution each), allowing users to create dynamic visual presentations. Each layer’s size, position, and priority are fully adjustable.
 100vw, 1000px” data-dt-location=”https://www.eagerled.com/novastar-vx1000-pro-led-controller/novastar-vx1000-pro/” data-lazy-src=”https://www.eagerled.com/wp-content/uploads/2025/12/NovaStar-VX1000-Pro.png” /><i></i></a></figure>
</div>
<div class= "NovaStar VX1000 Pro LED Display Manufacturer in China EagerLED")
2.4 Low Latency
Enabling the low-latency mode reduces frame delay to as little as 0 frames, making it ideal for live performances and real-time broadcasting.
2.5 OSD Functionality
Includes both text and image On-Screen Display (OSD) options. Text OSD supports static, dynamic, weather, and time components, while image OSD allows custom branding or logos.
2.6 Dual Receiving Card Backup
Ensures system reliability by backing up data across receiving cards, minimizing downtime during hardware failures.
2.7 Remote Control Compatibility
An optional remote control enables screen power management, brightness adjustment, and preset switching, providing hands-free convenience.
3.NovaStar VX1000 Pro Technical Specifications
3.1 Video Inputs
- HDMI 2.0: Supports resolutions up to 4K×2K@60Hz with HDCP 1.4 and 2.2 compliance.
- HDMI 1.3:Maximum resolution of 1920×1080@60Hz.
- 3G-SDI: Supports resolutions up to 1920×1080@60Hz with deinterlacing processing.
- USB 3.0: Enables playback of images and videos stored on a USB drive.
- OPT Ports: Self-adaptive OPT 1 for either video input or output, and OPT 2 for output with copy/backup functionality.
3.2 Video Outputs
- Ethernet Ports: 10 Gigabit Ethernet ports with a maximum loading capacity of 650,000 pixels per port.
- Output Resolution: Up to 10,240×8,192 pixels, ensuring compatibility with large-scale LED displays.
- Monitoring Display: Dedicated HDMI 1.3 output for real-time monitoring.
3.3 Image Processing Capability
- Layer Support: Handles up to 6 layers with customizable sizes, positions, and priorities.
- Low Latency: Reduces device delay to 0 frames when enabled.
- Pixel-Level Calibration:Achieves consistent brightness and color across the screen.
- OSD Functionality: Supports text and image overlays, including static/dynamic text, weather, and time OSDs.
3.4 Physical Specifications
- Dimensions: 6 mm × 302.2 mm × 50.1 mm
- Weight: 9 kg (net), 6.5 kg (packed)
- Operating Temperature:0°C to 50°C
- Certifications: CE, FCC, IC, PSE, RCM, EAC, UL, CB, KC, RoHS
4.Working Modes & Applications
4.1 Working Modes
The NovaStar VX1000 Pro supports three primary working modes, each designed for specific use cases:
1）Video Controller Mode
This is the default mode where the NovaStar VX1000 Pro processes and controls video signals for LED displays. It’s perfect for scenarios requiring precise layer management and multi-source input handling.
2）Fiber Converter Mode
When used as a fiber converter, the device transmits video signals over long distances using optical fibers. OPT 1 serves as the primary input, while OPT 2 provides backup or loop outputs.
3）ByPass Mode
In this mode, the NovaStar VX1000 Pro acts purely as a signal transmitter without applying any video processing. Ideal for redundancy setups or emergency backups.
4.2 Application Scenarios
The versatility of the NovaStar VX1000 Pro makes it suitable for a wide range of applications:
- Stage Performances: Handle complex layer overlays and deliver stunning visuals for concerts and theater productions.
- Corporate Events: Seamlessly integrate presentations, videos, and live feeds for conferences and product launches.
- Retail Displays: Create eye-catching advertisements with pixel-perfect color accuracy and vibrant imagery.
- Fine-Pitch LED Screens:Achieve consistent brightness and chroma levels for high-definition indoor displays.
5.Price of NovaStar VX1000 Pro
As a premium LED controller, the NovaStar VX1000 Pro typically ranges from $1,500 to $2,000 USD. Pricing may vary depending on regional availability, included accessories, and tax policies. For accurate quotes and customized solutions, contact authorized dealers or visit NovaStar’s official website.
6.Comparison between NovaStar VX1000 Pro and VX600 Pro
While both the NovaStar VX1000 Pro and VX600 Pro are excellent choices for LED display management, they cater to slightly different needs:
| Item | NovaStar VX600 Pro | NovaStar VX1000 Pro |
| Product Positioning | Mid–high level LED controller | High-end all-in-one LED controller |
| Max Loading Capacity | 3.9 million pixels | 6.5 million pixels |
| Max Width | 10,240 pixels | 10,240 pixels |
| Max Height | 8,192 pixels | 8,192 pixels |
| Input Interfaces | HDMI 2.0, HDMI 1.3, SDI | HDMI 2.0, HDMI 1.3, DP 1.2, SDI |
| Max Input Resolution | 4K×2K @60Hz | 4K×2K @60Hz |
| Ethernet Outputs | 6 × Gigabit Ethernet | 10 × Gigabit Ethernet |
| Layers | Up to 6 layers | Up to 6 layers |
| Presets | 256 | 256 |
| Application Scenarios | Rental events, exhibitions, conferences | Large stages, premium rental, complex LED systems |
| Overall Advantage | Cost-effective and stable | Higher capacity and stronger scalability |
7.NovaStar VX1000 Pro Resources Download
For comprehensive guidance, download the following resources:
8.Conclusion
The NovaStar VX1000 Pro stands out as a versatile and powerful LED controller, offering unparalleled flexibility and reliability. Its ability to handle high-resolution inputs, support multiple layers, and deliver pixel-perfect outputs makes it indispensable for modern LED display systems. Whether you’re organizing a concert, setting up a conference hall, or managing a retail display, the NovaStar VX1000 Pro ensures your visuals are crisp, vibrant, and synchronized.
For further inquiries or to explore customization options, don’t hesitate to reach out to NovaStar’s customer service team. With its cutting-edge technology and user-friendly design, the NovaStar VX1000 Pro is your ultimate solution for professional-grade LED control.
