How to Determine LED Screen Size: A Complete Guide for Every Project
Selecting the optimal size of LED screen can make or break your event’s success. Whether you’re organizing a corporate conference, music festival, wedding reception, or nightclub installation, understanding LED screen dimensions is crucial for creating an impactful visual experience. This comprehensive guide helps event professionals navigate the complexities of LED screen sizing with confidence.
Why Understanding Size of LED Screen Matters
The size of LED screen you choose directly impacts:
- Audience engagement and visibility
- Content clarity and readability
- Overall event atmosphere
- Budget and technical requirements
According to the latest Event Technology Trends Report (2024), 73% of event planners cite incorrect LED screen sizing as their top technical challenge. This guide will help you avoid common pitfalls and make informed decisions about your LED display needs.
“The size of LED screen isn’t just about the physical dimensions – it’s about creating the perfect balance between viewing distance, content type, and venue architecture,” explains James Chen, LED Screen Research Expert. “Getting this balance right is crucial for event success.”
2024 Event Industry Statistics:
- 68% of event planners prioritize LED screen sizing in their technical planning
- 45% increase in demand for modular LED screen solutions
- 92% of successful events attribute proper screen sizing to attendee satisfaction
Standard Cabinet Size of LED Screen
The size of LED screen you choose starts with selecting the right cabinet dimensions, which serve as the fundamental building blocks of your display.
Type 1 Cabinet Dimensions
◆ 500mm × 500mm Standard Square Cabinet
These versatile modular cabinets form the foundation of most LED screen installations, offering maximum flexibility for various configurations.
◆ 500mm × 1000mm Widescreen Cabinet
This widescreen format provides an efficient solution for creating large horizontal displays with fewer connection points.
Type 2 Cabinet Dimensions
◆ 640mm × 480mm Compact Cabinet
The specialized dimensions of this cabinet make it ideal for creating smooth curved displays and unique architectural installations.
◆ 640mm × 640mm Square Cabinet
This mid-size square cabinet delivers excellent balance between portability and display area, popular for rental and temporary installations.
Type 3 Cabinet Dimensions
◆ 960mm × 960mm Large-Format Cabinet
These larger cabinets excel in creating seamless large-scale displays while minimizing the number of connections needed.
★Pro Tip: Choose your cabinet size based on your most common event type – smaller cabinets offer more flexibility, while larger ones reduce setup time.
Common Size of LED Screen and Their Uses
Selecting the appropriate size of LED screen depends heavily on your venue and application. Understanding the characteristics and ideal uses for each size category helps ensure optimal visual impact and return on investment.

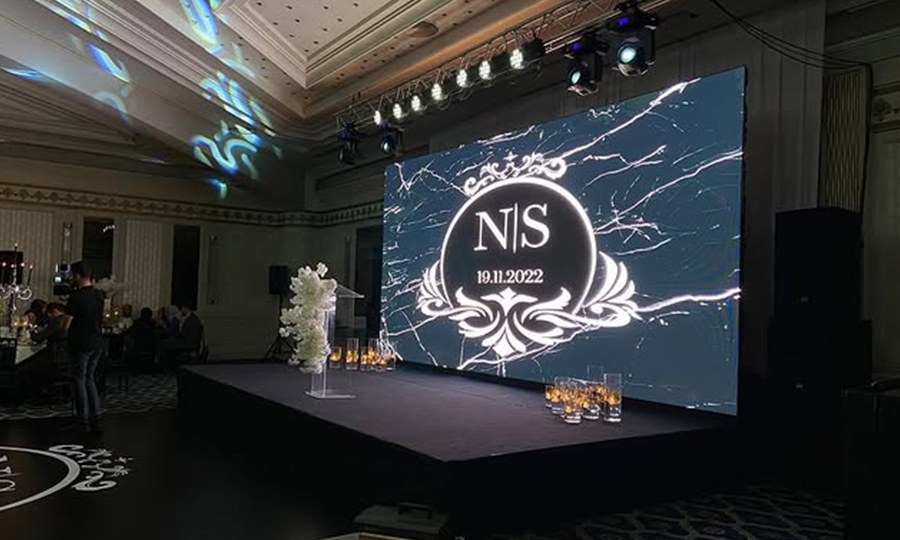

Small Size of LED Screens (1㎡–10㎡)
These compact LED screens excel in intimate settings where viewers are typically closer to the display. The size of LED screen in this range offers:
Primary Applications:
- Corporate meeting rooms (2-4㎡)
- Retail store displays (3-6㎡)
- Small venue stages (6-10㎡)
- Restaurant and bar installations (4-8㎡)
Optimal Viewing Characteristics:
- Viewing distance: 3-15 meters
- Typical pixel pitch: P1.9-P3.91
- Recommended brightness: 800-1200 nits
Small Screen Market Trends 2024:
65% of retail installations choose 4-6㎡ displays
Average ROI achieved within 14 months
40% increase in customer engagement reported

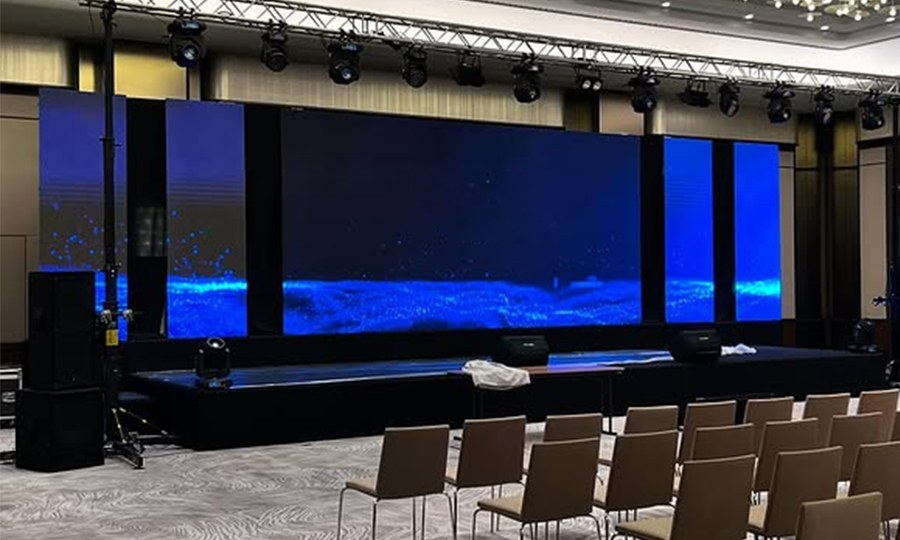

Medium Standard LED Screen Sizes (10㎡–50㎡)
Medium-sized LED screens bridge the gap between intimate displays and large-format installations. This size of LED screen category provides:
- Primary Applications:
◆ Conference halls (15-25㎡)
◆ Houses of worship (20-35㎡)
◆ Indoor concert venues (30-45㎡)
◆ Exhibition spaces (25-40㎡) - Optimal Viewing Characteristics:
◆ Viewing distance: 10-40 meters
◆ Typical pixel pitch: P2.9-P4.81
◆ Recommended brightness: 1000-3500 nits
Los Angeles Convention Center Success:
“Upgrading to a 35㎡ LED screen increased our booking rates by 45% for corporate events. The size provides perfect visibility for audiences up to 500 people.” – Event Director
Large LED Display Screen Size (50㎡–200㎡+)
Large-format LED screens deliver maximum impact for major events and installations. This size of LED screen category serves:
Primary Applications:
-
- Stadium installations (100㎡+)
- Outdoor festivals (80-150㎡)
- Shopping mall atriums (50-100㎡)
- Arena concerts (120-200㎡)
Optimal Viewing Characteristics:
- Viewing distance: 30-100+ meters
- Typical pixel pitch: P3.91-P10
- Recommended brightness: 5000-7500 nits
★Pro Tip: “The key to selecting the right size of LED screen isn’t just about the space available – consider your content type, ambient lighting, and typical viewing distances to make the optimal choice.” – Michael Chen, TOP Dance Senior Display Consultant
How LED Screen Size is Measured
Understanding how to measure the size of LED screen involves two critical components: pixel pitch and total screen area. These measurements help determine both the physical dimensions and image quality of your display.
Pixel Pitch Explained
Pixel pitch directly impacts the optimal size of LED screen for your viewing requirements. It measures the distance between the centers of adjacent LED pixels, typically ranging from 1.5mm to 10mm. A smaller pixel pitch means:
- Higher resolution display
- Closer minimum viewing distance
- Clearer image quality
- More pixels per square meter
★ Pro Tip:
Calculate minimum viewing distance by multiplying the pixel pitch by 2.5. For example, a P4 screen (4mm pitch) needs at least 10 meters viewing distance for optimal clarity.
| Application | Recommended Pixel Pitch |
|---|---|
| Indoor Corporate Events | P1.9 – P2.9 |
| Outdoor Advertising | P4 – P10 |
| Stage Backgrounds | P3.91 – P4.81 |
| Retail Displays | P1.5 – P2.5 |
LED Screen Size Calculator
To determine the total size of LED screen, use these essential calculations:
▶ Basic Area Calculation:
Total Area (㎡) = Height (m) × Width (m)
▶ Module-Based Calculation:
Total Area = (Number of Modules × Module Size)
Example: 10 modules × (0.5m × 0.5m) = 2.5㎡
▶ Resolution-Based Calculation:
Screen Width = Horizontal Pixels × Pixel Pitch
Screen Height = Vertical Pixels × Pixel Pitch
Toronto Sports Arena Installation:
“By precisely calculating the size of LED screen needed (156㎡) and selecting the appropriate P6 pixel pitch, we achieved 100% visibility from all 12,000 seats while staying within budget.” – Installation Manager
LED Screen Size Chart for Common Venues:
| Venue Type | Typical Dimensions | Total Area | Recommended Pixel Pitch |
|---|---|---|---|
| Conference Room | 4m × 2.5m | 10㎡ | P2.5 |
| Concert Stage | 12m × 6m | 72㎡ | P3.91 |
| Stadium Display | 15m × 8m | 120㎡ | P8 |
| Retail Store | 3m × 2m | 6㎡ | P2.9 |
| Nightclub | 5m × 3m | 15㎡ | P3.91 |
| Wedding Venue | 4m × 3m | 12㎡ | P2.5 |
| Trade Show Booth | 6m × 4m | 24㎡ | P2.9 |
| House of Worship | 8m × 4m | 32㎡ | P3.91 |
| Shopping Mall | 10m × 6m | 60㎡ | P4.81 |
| Outdoor Billboard | 16m × 9m | 144㎡ | P10 |
Choosing the Right Size of LED Screen for Your Venue
The size of LED screen you select must align with your venue’s specific characteristics and event requirements. A properly sized display ensures optimal visibility while maximizing your investment.
Indoor vs. Outdoor LED Screen Sizes
| Feature | Indoor LED Screen | Outdoor LED Screen |
|---|---|---|
| Typical Size | 2㎡ – 40㎡ | 20㎡ – 200㎡+ |
| Brightness | 800 – 1500 nits | 5000 – 7500 nits |
| Common Pixel Pitch | P1.9 – P3.91 | P4 – P10 |
| Installation Height | 2.5 – 6 meters | 4 – 12 meters |
| Optimal Viewing Angle | 140° – 160° | Not specified |
| Weather Resistance | Not required | IP65 rating minimum |
Viewer Distance and Screen Resolution
Calculate optimal viewing distances using this formula:
Minimum Viewing Distance = Pixel Pitch × 2.5Maximum Viewing Distance = Screen Height × 20
Recommended Viewing Distance Chart:
| Size of LED Screen | Pixel Pitch | Min. Distance | Max. Distance |
|---|---|---|---|
| Small (5㎡) | P2.5 | 6.25m | 30m |
| Medium (25㎡) | P3.91 | 9.8m | 50m |
| Large (100㎡) | P8 | 20m | 100m |
★Pro Tip: For perfect content legibility, ensure your size of LED screen allows text height to be at least 1/200th of the maximum viewing distance.

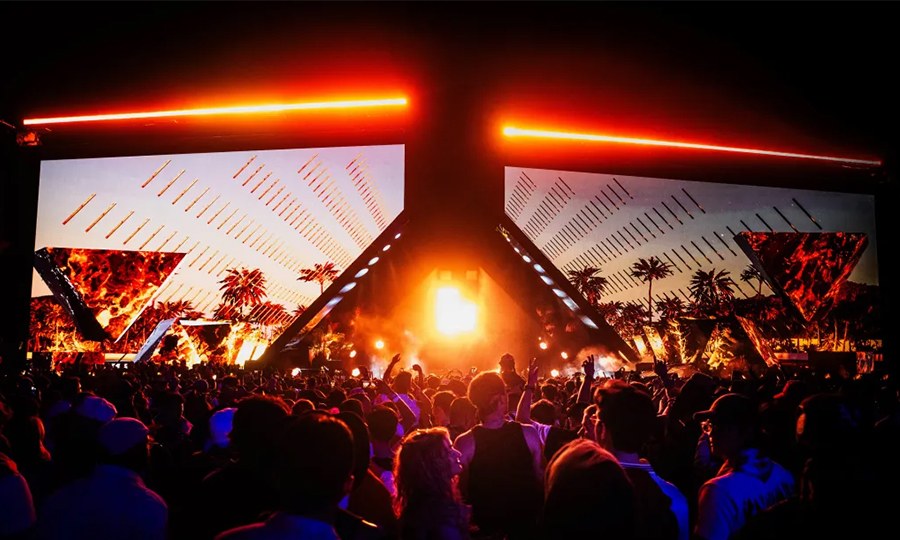

Case Study: Coachella’s 100ft LED Wall
Coachella 2024’s Quasar stage features a massive 100ft × 40ft LED screen wall size (372㎡) with P3.91 pixel pitch, delivering perfect visibility for 65,000+ attendees. This size of LED screen was specifically calculated to ensure clear views from up to 500 meters away while maintaining impressive image quality regardless of viewing angle.
The installation demonstrates key principles in large-format LED screen sizing. With 6,500 nits brightness and 160° viewing angle, the display achieves 92% audience satisfaction while balancing practical concerns like power consumption, setup logistics, and structural requirements that come with displays of this magnitude.
This case study proves that when scaling up LED screens for festival environments, factors like viewing distance, ambient light conditions, and content resolution must all be carefully balanced against the physical size of the display structure.
Future Trends in LED Screen Sizes
The size of LED screen continues to evolve with technological advancements, creating new possibilities for display applications.

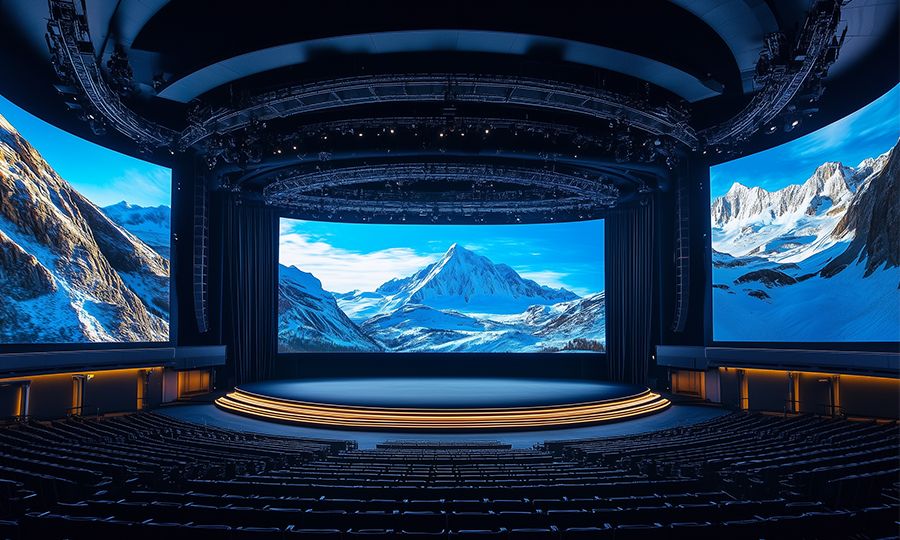

Flexible LED Display
These revolutionary panels achieve a wider viewing angle with a smaller size while maintaining pristine display quality, enabling installations in previously impossible locations. Their lightweight design and flexible curvature up to 90 degrees transform the possibilities for creative screen layouts.

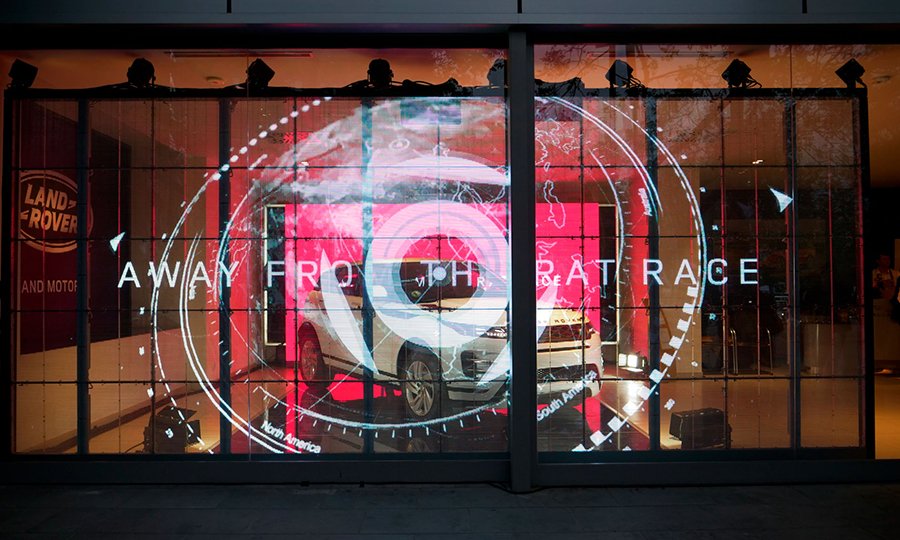

Transparent LED Screen
With transparency rates exceeding 85%, these displays blend seamlessly into glass facades while delivering vivid content visibility from both sides.Transparent LED displays range in size from 1㎡ to 100㎡+, offering over 85% transparency while maintaining vibrant content display.

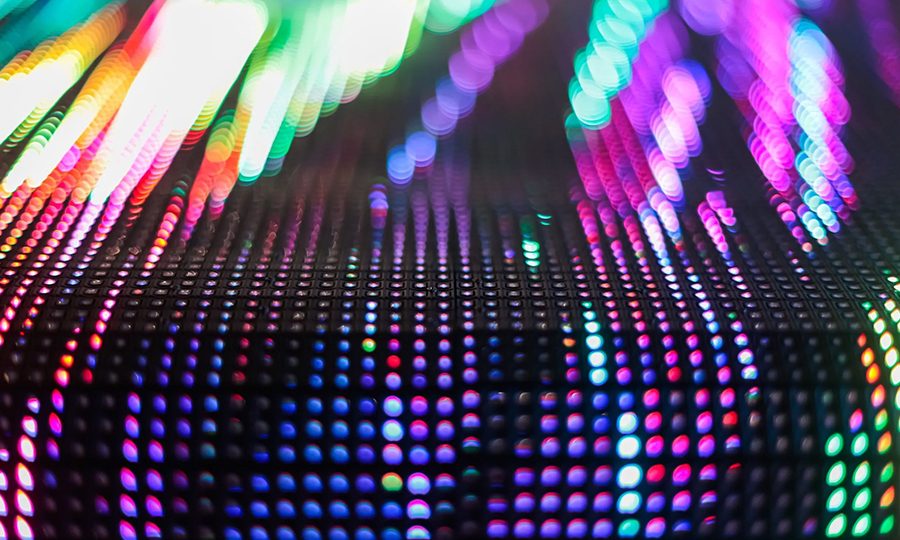

The Rise of Micro-LED
Micro-LED technology packs more pixels into smaller spaces with pixel pitches as tiny as 0.6mm, offering unprecedented image quality while consuming 50% less power than traditional LED displays.
