HD-VP210C LED Controller: Professional Video Wall System Solution
LED video walls have become an essential tool for delivering impactful visual experiences in various settings, from shopping malls to conference rooms. To ensure seamless operation and stunning visuals, choosing the right LED controller is crucial. The HUIDU HD-VP210C stands out as a versatile and cost-effective solution designed specifically for LED video walls.
This blog post will explore its features, specifications, applications, and setup process, helping you understand why it’s the ideal choice for your LED display needs.
1.Overview of HUIDU HD-VP210C
The HUIDU HD-VP210C is an ultra-cost-effective 3-in-1 video processor that combines traditional video processing capabilities with advanced network output functionality. Designed for LED video walls, this controller simplifies installation while enhancing reliability. It supports multiple input sources, including HDMI and USB, making it suitable for a wide range of environments such as hotels, shopping malls, studios, and exhibition halls.
One of the standout features of the HUIDU HD-VP210C is its ability to deliver point-to-point input/output, ensuring crisp and clear visuals on LED displays. With a control range of up to 2.6 million pixels, it caters to high-resolution requirements, making it an excellent choice for large-scale installations.
2.Key Features of HUIDU HD-VP210C
2.1 Wide Control Range
The HUIDU HD-VP210C boasts a maximum control range of 2.6 million pixels, with a width of up to 3840 pixels and a height of 2500 pixels. This makes it suitable for both small and large LED video walls, ensuring high-quality visuals regardless of the screen size.
| Feature | Specification |
| Maximum Pixels | 2.6 Million |
| Maximum Width | 3840 Pixels |
| Maximum Height | 2500 Pixels |
2.2 Multi-Channel Signal Switching
The controller supports seamless switching between two HDMI inputs and one USB input. This flexibility allows users to alternate between live feeds, pre-recorded videos, and presentations without interruptions.
2.3 USB Playback Functionality
With the HUIDU HD-VP210C, you can directly play videos and images from a USB drive. It supports a variety of file formats, including MP4, AVI, JPG, and PNG, with playback resolution up to 1080P HD.
| Supported Video Formats | Supported Image Formats |
| MP4, AVI, MPG, MKV, MOV, VOB, RMVB | JPG, JPEG, PNG, BMP |
2.4 Advanced Audio Input/Output
The device includes two HDMI audio inputs and a TRS 3.5mm standard dual-channel audio output. This ensures high-quality sound synchronization with your visuals, making it perfect for multimedia presentations and events.
2.5 Gigabit Network Output
Equipped with four gigabit Ethernet ports, the HUIDU HD-VP210C supports direct cascading to receiving cards. This feature simplifies the wiring process and enhances data transmission speed, ensuring smooth performance even in complex setups.
2.6 One-Key Brightness Adjustment
Adjusting brightness levels is effortless with the HUIDU HD-VP210C. A single button press allows users to optimize screen visibility based on ambient lighting conditions, eliminating the need for cumbersome manual adjustments.
2.7 Key Locking Mechanism
To prevent accidental changes during operation, the controller includes a key-locking feature. This ensures uninterrupted display performance, even in high-traffic environments.
2.8 Optional IR Wireless Control
For added convenience, the HUIDU HD-VP210C offers optional IR wireless control. This allows users to switch programs, adjust brightness, and perform other functions remotely.
3.Technical Specifications of HUIDU HD-VP210C
Below is a detailed chart outlining the technical parameters of the HUIDU HD-VP210C:
| Parameter | Value |
| Rated Voltage | AC 100-240V |
| Working Temperature | -20°C to 60°C |
| Working Humidity | 20%RH to 90%RH |
| Storage Humidity | 10%RH to 95%RH |
| Input Ports | 2x HDMI, 1x USB |
| Output Ports | 4x Gigabit Ethernet |
| Supported Resolutions | Up to 1920×1080p@60Hz |
| Control Range | 2.6 Million Pixels |
4.Applications of HUIDU HD-VP210C
The versatility of the HUIDU HD-VP210C makes it suitable for a wide range of applications:
4.1 Shopping Malls
In retail environments, LED video walls powered by the HUIDU HD-VP210C can display vibrant advertisements, product promotions, and engaging multimedia content.
4.2 Conference Rooms
For corporate settings, the controller ensures seamless presentations and video conferencing, enhancing communication and collaboration.
4.3 Exhibition Halls
At exhibitions, the HUIDU HD-VP210C delivers high-resolution visuals that captivate audiences and effectively convey information.
4.4 Studios and Broadcasts
The controller’s advanced audio and video synchronization capabilities make it ideal for use in studios and live broadcasts.

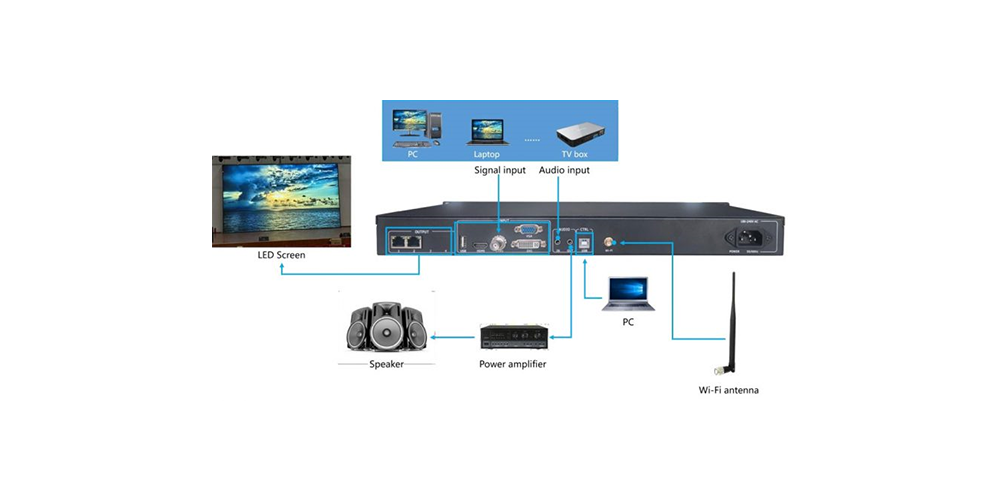

5.Setting Up the HUIDU HD-VP210C
Setting up the HUIDU HD-VP210C is straightforward, thanks to its user-friendly design. Below are the steps to get started:
5.1 Connecting Input Devices
1.Connect your HDMI devices (e.g., laptops or cameras) to the HDMI input ports.
2.Insert a USB drive containing your media files into the USB port.
5.2 Configuring Output Ports
1.Use the four gigabit Ethernet ports to connect the controller to receiving cards.
2.Ensure all connections are secure to avoid data transmission issues.
5.3 Adjusting Settings
1.Use the front panel buttons to switch between input signals and adjust brightness.
2.Enable the key-locking feature to prevent accidental changes.
6.FAQs About HUIDU HD-VP210C
Q1：What are the main features of the HUIDU HD-VP210C?
The HUIDU HD-VP210C supports multi-channel signal switching, USB playback, gigabit network output, and one-key brightness adjustment.
Q2：What is the maximum control range of the HUIDU HD-VP210C?
The controller supports a maximum control range of 2.6 million pixels, with a width of up to 3840 pixels and a height of 2500 pixels.
Q3：How do I publish programs to the HUIDU HD-VP210C?
You can publish programs by inserting a USB drive containing your media files or connecting HDMI devices for live feeds.
Q4：What kind of storage does the HUIDU HD-VP210C support?
The controller supports USB drives formatted in FAT or FAT32, with capacities of up to 128GB.
Q5：What are the supported connection types for the HUIDU HD-VP210C?
The HUIDU HD-VP210C supports HDMI, USB, and gigabit Ethernet connections.
7.Conclusion
In conclusion, the HUIDU HD-VP210C is a powerful and versatile LED controller that meets the demands of modern LED video walls. Its robust features, ease of use, and wide range of applications make it an ideal solution for businesses and organizations seeking high-quality visual displays. Whether you’re setting up a shopping mall advertisement or hosting a corporate event, the HUIDU HD-VP210C ensures exceptional performance and reliability.
