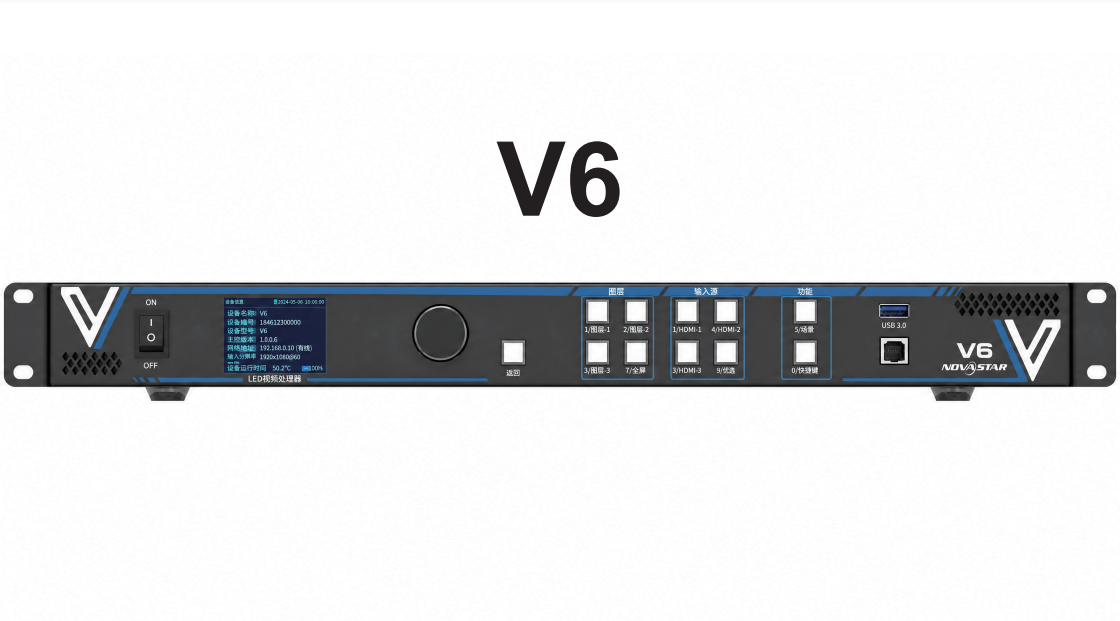

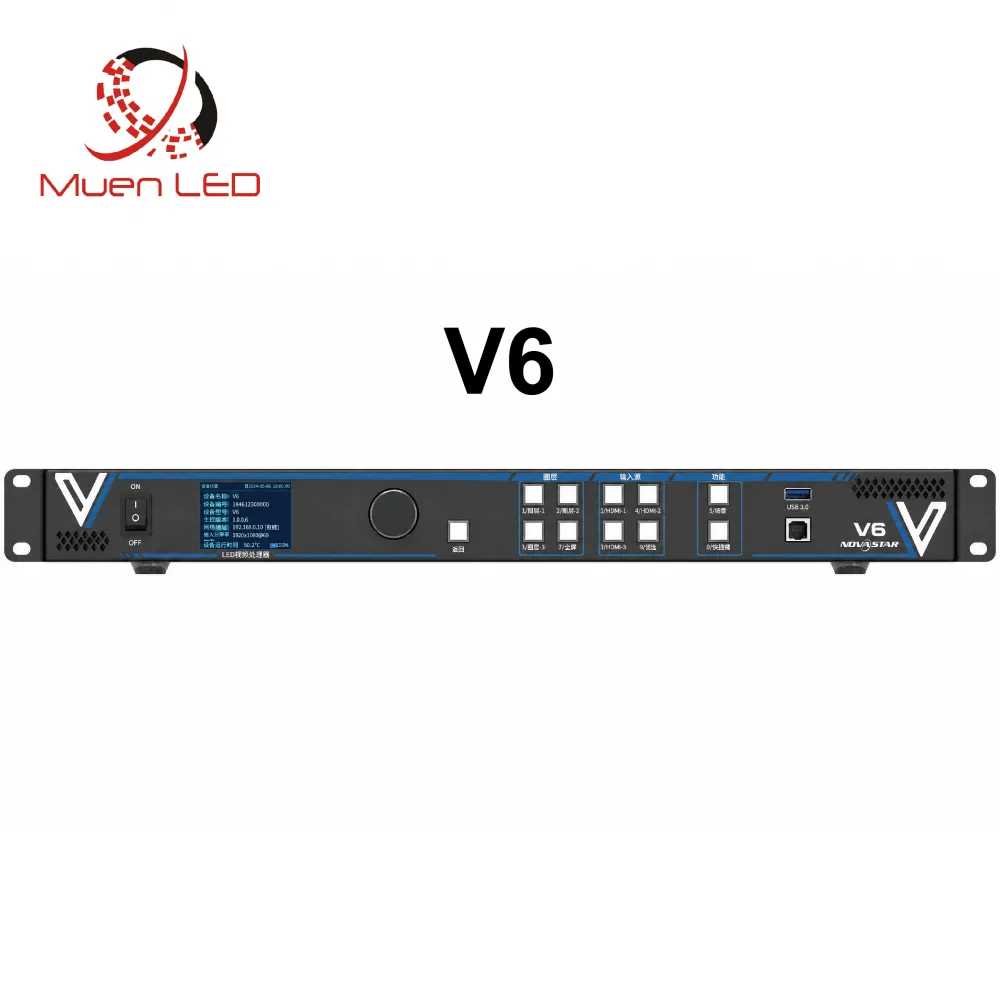

V6 is an all‑in‑one LED display controller that integrates video processing and video control. A single unit drives 3.9 million pixels, with a maximum width of 10240 pixels and a maximum height of 8192 pixels — built for ultra‑wide, ultra‑high‑resolution LED screens used in fixed installations.
The V6 features powerful video signal receiving capabilities, supporting 4K×2K@60Hz video input, up to 5 video input signals, and up to 6 layers of 2K×1K resources. It supports seamless switching, brightness and chroma calibration and other image enhancement features for outstanding visual performance.
Key Features
- Loading capacity: 6 × Gigabit Ethernet ports driving up to 3.9 million pixels; single‑port load is 650,000 pixels at 8‑bit output depth.
- Complete input interfaces: 1 × HDMI 2.0 (IN&LOOP), 2 × HDMI 1.3, 1 × 3G-SDI (IN&LOOP, optional), 1 × USB 3.0.
- Output interfaces: 6 × Gigabit Ethernet ports; 1 × optical fiber port (supports transmitting 1 to 6 Ethernet ports); 1 × HDMI 1.3 monitoring output.
- Audio input & output: HDMI (and DP, where available) embedded audio input, 3.5mm independent audio input and output, volume adjustment supported.
- Multi‑layer display: up to 6 layers of 2K×1K resources, with layer size, position and priority independently adjustable and layer scaling supported.
- Scene presets: up to 256 custom scenes with one‑click loading, plus scene saving, overwriting and deletion, and layer layout preview.
- Powerful video processing: equipped with SuperView III image processing technology for lossless scaling, one‑click full‑screen scaling and arbitrary input source cropping.
- Image quality adjustment: brightness, contrast, saturation and hue.
- Per‑pixel brightness and chroma calibration: works with NovaLCT and calibration platforms to eliminate colour differences across the screen.
- Multiple working modes: video controller and fiber converter modes.
- Multiple control methods: front panel knob, NovaLCT, Unico software, visual intelligent control platform and WeChat mini‑program.
- Full‑link backup: supports device backup, input source hot backup, Ethernet port backup and fiber port backup, plus network port backup validity testing without unplugging cables.
- Powered‑off memory: configurations are stored automatically and restored after power on.
- 3D support: connect an EMT200 series 3D emitter via the device network port and use paired 3D glasses. When 3D is enabled and the source format is “Left‑Right” or “Top‑Bottom”, the device output loading is halved.
- Rugged industrial‑grade enclosure for complex operating environments.

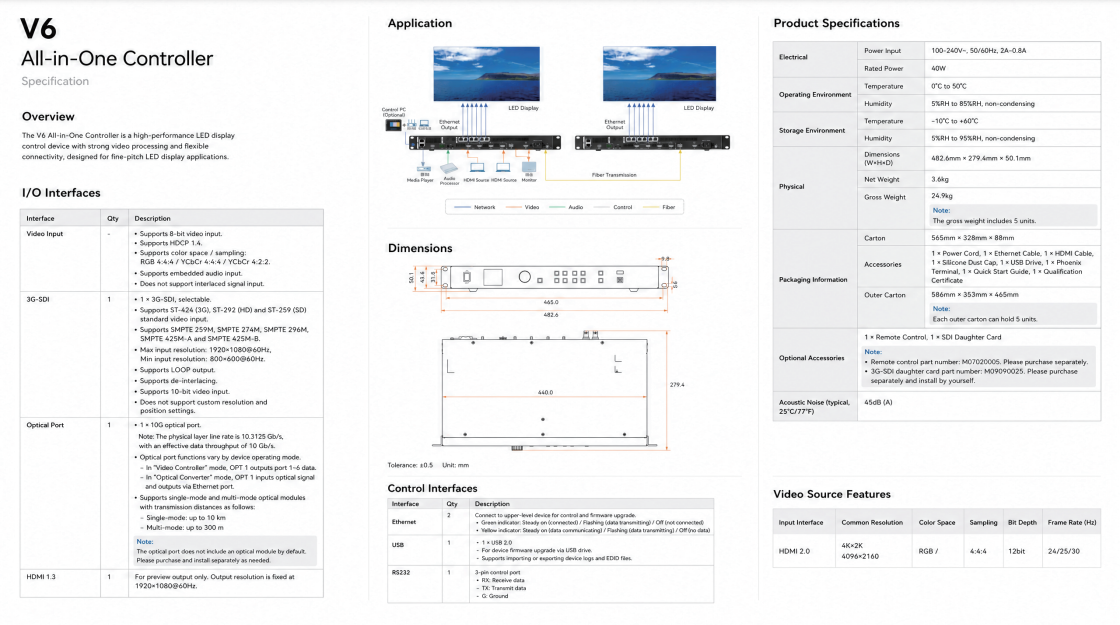

Specifications
| Loading capacity | 3.9 million pixels (6 × Gigabit Ethernet ports) |
| Maximum width × height | 10240 × 8192 pixels |
| Single port load | 650,000 pixels at 8‑bit output depth |
| Input interfaces | 1 × HDMI 2.0 (IN&LOOP), 2 × HDMI 1.3, 1 × 3G-SDI (IN&LOOP, optional), 1 × USB 3.0 |
| Output interfaces | 6 × Gigabit Ethernet; 1 × optical fiber port (supports transmitting 1 to 6 Ethernet ports); 1 × HDMI 1.3 monitoring output |
| Video input | Up to 4K×2K@60Hz; up to 5 video input signals |
| Layers | up to 6 layers of 2K×1K resources |
| Scene presets | Up to 256 custom scenes |
| Power input | 100–240V~, 50/60Hz |
| Power consumption | 40W |
| Operating environment | 0°C ~ 50°C; 5%RH ~ 85%RH, non‑condensing |
| Storage environment | −10°C ~ +60°C; 5%RH ~ 95%RH, non‑condensing |
| Dimensions | 482.6mm × 276.1mm × 50.1mm |
| Net weight | 3.4kg |
| Gross weight | 5.9kg |
| Carton | 565mm × 300mm × 85mm |
| Flight case | 580mm × 365mm × 440mm |
| Noise level (typical, 25°C) | 45dB(A) |
Package Contents
1 × Power Cord, 1 × Ethernet Cable, 1 × HDMI Cable, 1 × USB Drive, 1 × Certificate of Conformity, 1 × Warranty Card, 1 × WiFi Antenna, 1 × Quick Start Guide, 1 × Qualification Certificate
Applications
The V6 adopts an industrial‑grade enclosure. With powerful video processing and transmission capabilities it adapts to complex operating environments and is widely used in LED display fixed installation scenarios such as command centres, conference venues, exhibition halls and commercial advertising screens.
FAQ
Q: What is the Nova V6 used for?
A: It is an all‑in‑one LED display controller that combines video processing and video control in one box. One V6 takes up to 4K×2K@60Hz video input, processes it and drives a large LED screen — making it a complete solution for fixed installations without a separate processor.
Q: How much screen can one V6 drive?
A: A single V6 loads up to 3.9 million pixels through its 6 Gigabit Ethernet ports, with a maximum width of 10240 pixels and a maximum height of 8192 pixels. Single‑port load reaches 650,000 pixels at 8‑bit output depth, and there are no line or rectangular loading restrictions beyond the overall capacity.
Q: How do I control and configure the V6?
A: Connect via the front panel knob, NovaLCT, Unico software, a visual intelligent control platform or a WeChat mini‑program. It also supports NovaLCT‑based per‑pixel brightness and chroma calibration and up to 256 custom scene presets with one‑click loading.
Q: What are the power and environmental requirements of the V6?
A: 100–240V~ 50/60Hz input with 40W power consumption. It operates from 0°C to 50°C at 5–85%RH non‑condensing and stores from −10°C to +60°C at 5–95%RH. The chassis measures 482.6mm × 276.1mm × 50.1mm and weighs 3.4kg net.
Q: What safety and redundancy features does the V6 offer?
A: Full‑link backup — device backup, input source hot backup, Ethernet port backup and fiber port backup — plus network port backup validity testing without unplugging cables. Configurations are stored automatically and restored after a power loss.
